设计名称
手机电池盖注塑模具设计【手机外壳】【手机后盖】【一模四腔】【说明书+CAD+UG】
设计编号
Z1459
设计软件
AutoCAD,Word,UG
包含内容

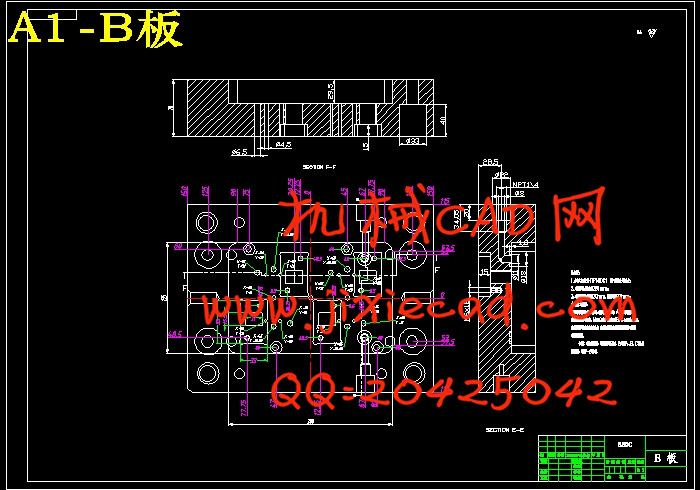

见右侧图片
说明字数
见下方截图
图纸数量
见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2017-11-29
整理人
admin
购买流程
查看如何购买本站设计

设计简介

摘要

本文主要介绍了手机电池盖注塑模设计，塑料成形工艺以及注塑的过程，也对注塑机也进行了一些简单的介绍。注塑模设计的主要过程有：塑料制品的工艺分析，型腔数目的确定，注塑机的选择以及模具的结构设计。模具的结构设计包括：浇注系统的设计，成型零件设计，导向机构设计，侧面分型机构设计，脱模机构设计，冷却机构设计以及排气系统设计。由于特殊形状，无法直接脱模，需设置侧面分型机构，本套模具是通过斜导柱进行侧面分型，本文对模具的各部分零件进行了设计与计算。本文给出了详细的设计过程及装配图。

关键词：手机电池盖；成型；注塑模；工艺

Abstract

This paper mainly introduces the design of the injection mould for the fixed frame steam pipe, process and injection molding process molding plastics, but also on the injection molding machine are introduced. The main injection mold design process are: process analysis of plastic products, to determine the number of cavity, the structure design and the selection of injection molding machine and mold. The structural design of mold include: the design of gating system, forming part design, design oriented mechanism, side parting mechanism design, demoulding mechanism design, cooling system design and exhaust system design. This design is a mold two cavity mold. Due to the special shape, can not be directly release, need to set up the side parting mechanism, the die is divided by the side of the oblique guide pillar, all part of part in mould design and calculation. This paper presents the design process in detail and assembly drawings.
Key Words: steam pipe holder; forming process; injection mold
