设计名称
手机模型的UG建模与CAM加工【说明书+UG】
设计编号
JX6315
设计软件
Word,UG
包含内容
见右侧图片
说明字数
见下方截图
图纸数量
见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2018-03-29
整理人
admin
设计简介

摘  要

当前世界上正在进行着新一轮的产业调整,一些产品的制造正在向发展中国家转移,中国已经成为许多跨国公司的首选之地,中国正在成为世界制造大国,这已经成为不争的事实。随着数控技术的发展,数控技术的应用不但给传统制造业带来了革命性的变化,使制造业成为工业化的象征,而且随着数控技术的不断发展和应用领域的扩大,它对国计民生的一些重要行业的发展起着越来越重要的作用。
本文主要通过铣削加工数控工艺分析与加工,综合所学的专业基础知识,全面考虑可能影响在铣削、钻削加工中的因素,设计其加工工艺和编辑程序,完成要求。

关键词:工艺分析;加工方案;切削用量;数控编程

Abstract


The world is undergoing the new round of industrial restructuring, producing some products are transferred to the developing country, Chinese has become the first choice of many Multi-National Corporation, China is becoming the world's manufacturing power, which has become an indisputable fact. With the development of numerical control technology, numerical control technology application has brought the revolutionary change for the traditional manufacturing industry, causes the manufacturing industry to become a symbol of industrialization, and is expanding with the development of numerical control technology and applications, it is beneficial to the people's livelihood of some important industry plays a more and more important role.
This paper mainly through the analysis of NC machining technology and machining, professional knowledge of students, comprehensive consideration the influence factors in the milling, drilling process, design the processing and editing program, completed the requirements.
Keywords: process analysis; machining; cutting; numerical control programming

目录
1   1
1.1 UG特点及优缺点 1
1.2本论文的研究内容 1
1.3选题意义 2
1.4论文结构 2
2 手机模型三维模型 3
2.1 手件工件模型 3
2.1.1 手机模型三维模型 3
2.1.2 手机模型建模分析 3
2.2 基于UG NX的手机模型建模 4
2.2.1 步骤一:零件草图的绘制,采用二维曲线绘制 4
2.2.2 步骤二:零件图的拉伸 5
2.2.4 步骤四:手机模型的上表面部位的拉伸步骤 6
2.2.5 步骤五:手机模型的后盖部位 7
2.2.6 步骤六 8
3 手机模型加工编程 26
3.1 工艺分析 26
3.1.1 零件的分析 26
3.1.2 工件的装夹 26
3.1.3 工件坐标系 26
3.1.4 工步安排 26
3.2 工艺表格 27
4 基于UG NX的编程 29
4.1 加工前的模型处理与加工装备 29
4.2 整体粗加工 30
4.3 整体半精加工 34
4.4 整体精加工 36
5章、仿真加工与产生NC程序 40
5.1 仿真加工 40
5.1.1 仿真加工的演示步骤 40
5.1.2 仿真操作 40
5.2 产生NC程序 42
5.3 输出程序 44
结论 45
参考文献 46
致谢 47

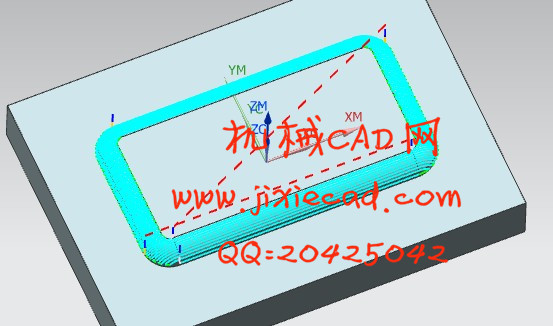

部分图纸截图
