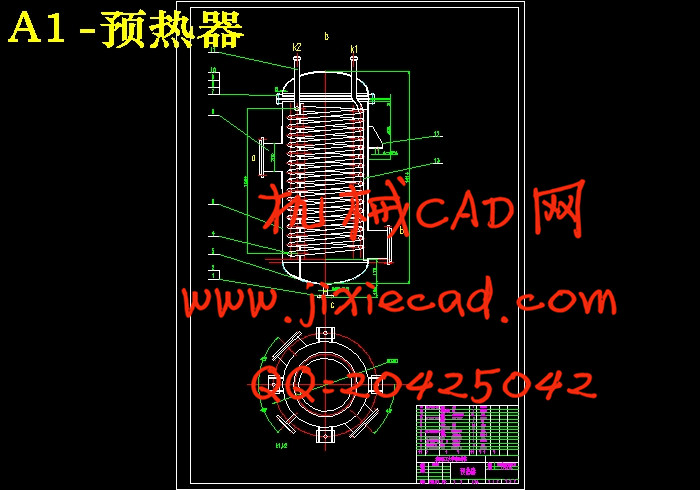

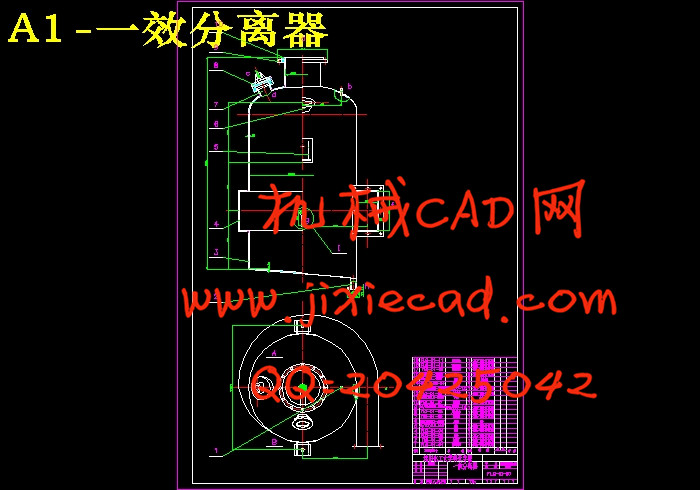

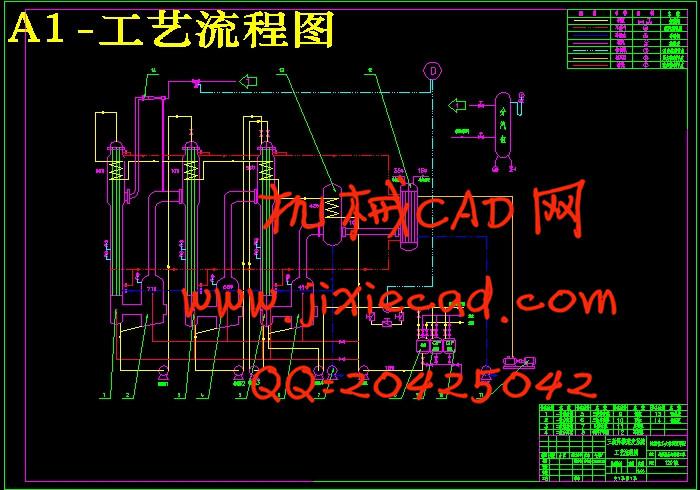

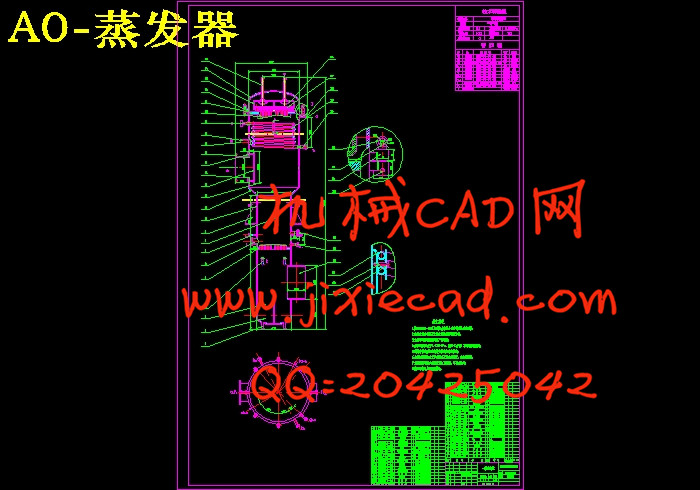

中药厂水提液浓缩系统节能改造技术——蒸发水量3500kg/h【过程装备与控制工程类】【说明书+CAD】
设计编号
JX6502
设计软件
AutoCAD,Word
包含内容
见右侧图片
说明字数
见下方截图
图纸数量
见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2018-04-04
整理人
admin
设计简介

摘要

中药是中华民族五千年传统文化的瑰宝,是千百年医疗实践的结晶,也是世界优秀文化的精华。我国中药产业经过几十年的发展,已具有一定的规模和研发能力,在中药材、中药饮片和剂型等方面取得了一定的成绩。然而随着人们生活水平的不断提高,以及新的健康理念产生,国内市场对中药的需求量迅速增长,竞争力的加强,中药的发展面临着巨大的挑战和机遇。
近百年来,西医西药逐渐主导我国医疗市场,已薪火相传五千年的中医中药遇到了前所未有的困难。资料显示,我国著名中医专家已从上世纪 80 年代的 5000 余名骤减至现在的不足 500 名,仅有 27%的百姓生病后愿意看中医—中医药正陷入传承危机。时至今日,学术界仍有人公然以科学的名义提出“废除中医中药”的观点,阻碍了中医药的发展和振兴。[1]
中药三效降膜蒸发系统是将料液自降膜蒸发器加热室上管箱加入,经液体分布及成膜装置,均匀分配到各换热管内,在重力和真空诱导及气流作用下,成均匀膜状自上而下流动。流动过程中,被壳程加热介质加热汽化,产生的蒸汽与液相共同进入蒸发器的分离室,汽液经充分分离,蒸汽进入冷凝器冷凝(单效操作)或进入下一效蒸发器作为加热介质,从而实现多效操作,液相则由分离室排出。三效蒸发器主要由相互串联的三组蒸发器、冷凝器、分离器和辅助设备等组成三组蒸发器以串联的形式运行,组成三效蒸发器。 整套蒸发系统采用连续进料连续出料的生产方式,实现了对中药的蒸发浓缩。
关键词:发展现状; 发展和振兴; 三效降模; 料液; 蒸发系统

 Abstract
Traditional Chinese medicine is the treasure of the Chinese traditional culture in five thousand, is the crystallization of medical practice in one thousand, is the world's outstanding cultural essence. Traditional Chinese medicine industry in China after decades of development, already has a certain scale and development capacity, in terms of traditional Chinese medicine, Chinese medicine yinpian, and dosage form has obtained certain achievements. However, as people living standard unceasing enhancement, as well as the new health concept, the domestic market, the demand for traditional Chinese medicine is growing rapidly, the strengthening of competitiveness, the development of traditional Chinese medicine is facing enormous challenges and opportunities.
Over the past century, western medicine gradually dominate the medical market in China, western medicine has been experiencing five thousand years of traditional Chinese medicine has met.Unprecedented difficulties. The data shows, a famous Chinese medicine experts in China has sharply reduced from more than 5000 of the 5000 s Now less than 500, only 27% of people willing to look after sick - Chinese medicine of traditional Chinese medicine is in a succession crisis. These Today, the academic circles still someone openly in the name of science, the viewpoint of "abolishing traditional Chinese medicine" impedes the development of traditional Chinese medicine.The development and revitalization.
Chinese medicine three-way falling film evaporation system is the material liquid from falling film evaporator tube box on the heating chamber to join, the liquid distribution and film forming device, even within the assigned to each heat exchange tube, under the action of gravity and vacuum induction and airflow, into homogeneous membrane flow from top to bottom. The shell side of the flow in the process, by heating medium heating vaporization and separation of the steam produced from the liquid into the evaporator chamber, the vapor liquid after the separation, the steam entering the condenser condensate (single-effect operation) or into the next effect evaporator as a heating medium, so as to realize multiple effect, liquid discharge by the separation chamber. Three effect evaporator consists in series of three groups of evaporator, condenser, separator, and auxiliary equipment such as evaporator in the form of a series of three groups run, three-way steamed
Keywords:state-of-the-art;  the development and revitalization;  three-way falling film;  material liquid;  evaporation system
