摘  要

随着科学技术的进步，人们生活水平的提高，也就导致人们对居住和工作的环境有了更高的要求。作为建筑材料的一个分支—涂料工业也得到突飞猛进的发展，涂料是国民经济各部门不可缺少的配套材料，广泛应用于各类建筑物、各种工业制品（如飞机、火箭、人造卫星、汽车、船舶、机械电子和轻工家电等）的装饰保护以及各类钢铁设施（如码头、海洋石油钻井平台、石油化工装备、输送管道、输变电塔和桥梁等）的防腐保护。随着国民经济的发展和人民生活水平的提高，涂料的应用范围不断扩大。涂料的消费水平已成为一个国家经济发展水平的重要标志之一。

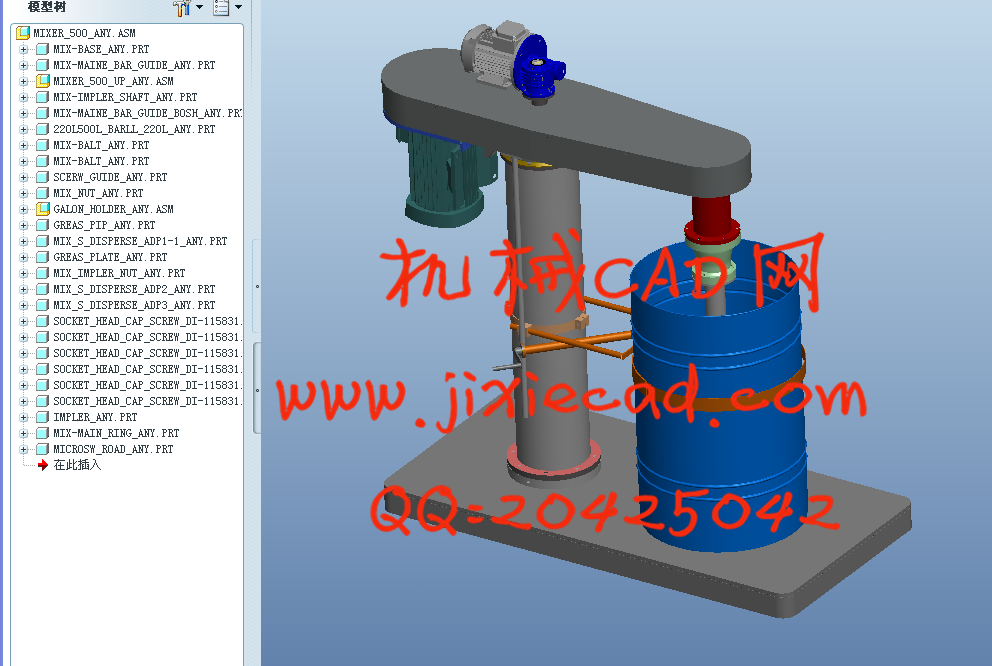

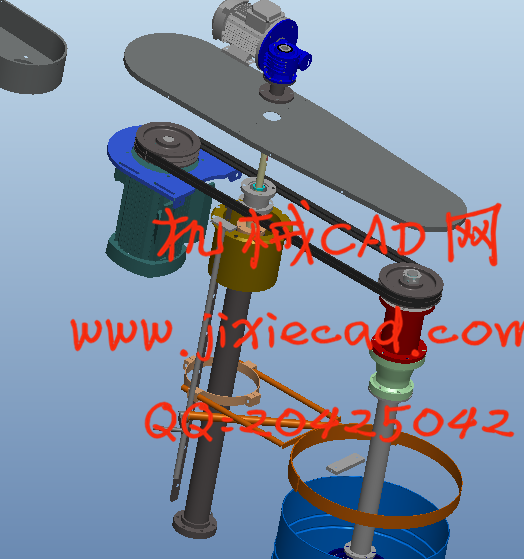

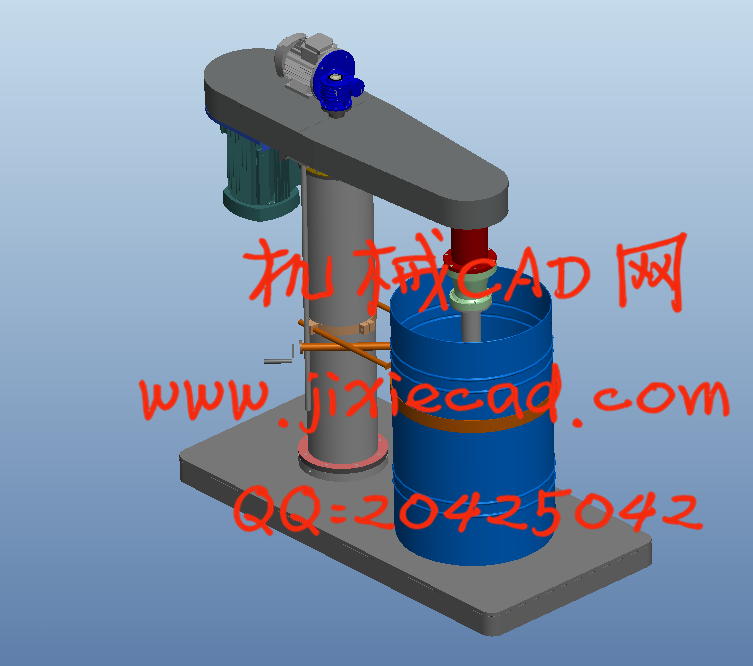

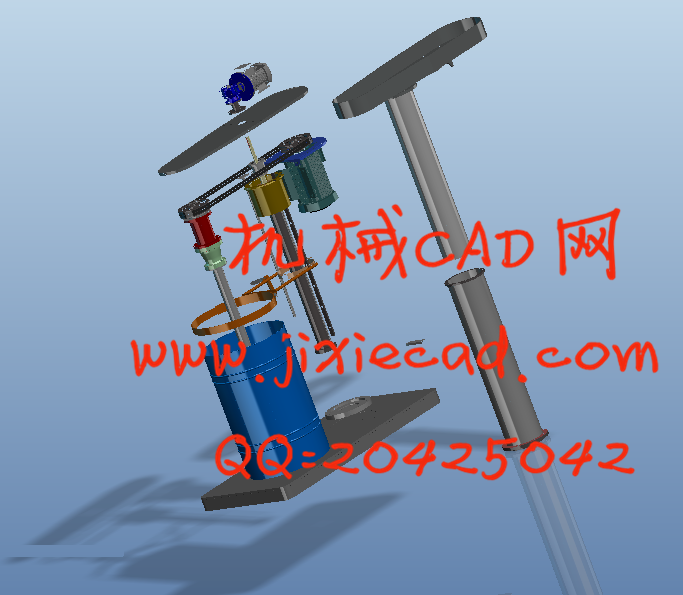

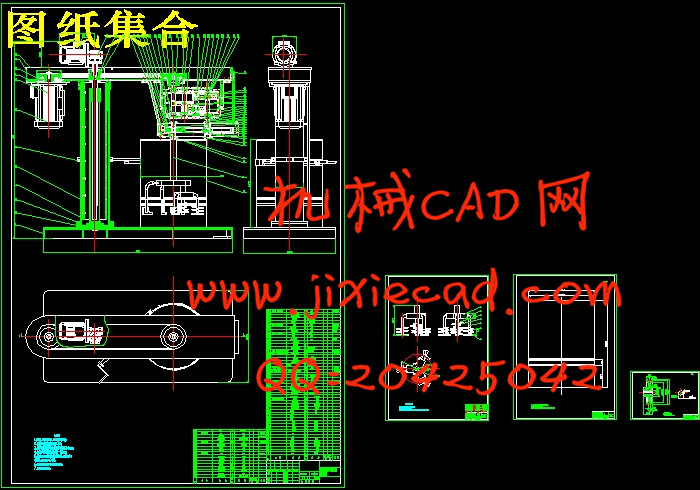

整机结构主要由电动机、机架、传动带、减速机构、搅拌装置构成。由电动机产生动力通过带轮将需要的动力传递到带轮上，带轮带动减速装置 ，减速装置将动力输出到卡盘和丝杠上面，从而带动整机装置运动

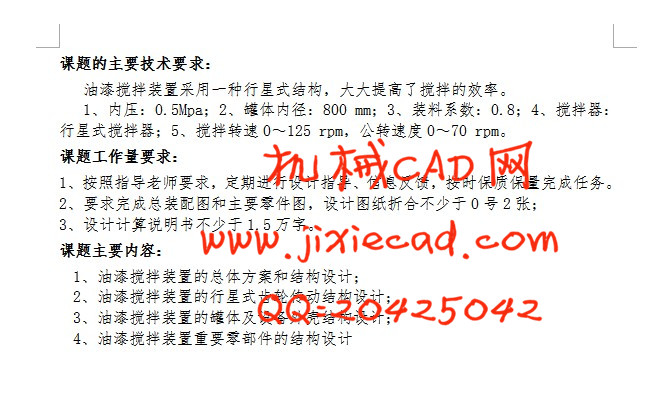

本论文研究内容摘要：
(1) 油漆搅拌装置设计总体结构设计。
(2) 油漆搅拌装置设计工作性能分析。
(3)电动机的选择。
(4)对油漆搅拌装置设计的传动系统、执行部件及机架设计。
(5)对设计零件进行设计计算分析和校核。
(6)运用计算机辅助设计，对设计的零件进行建模。

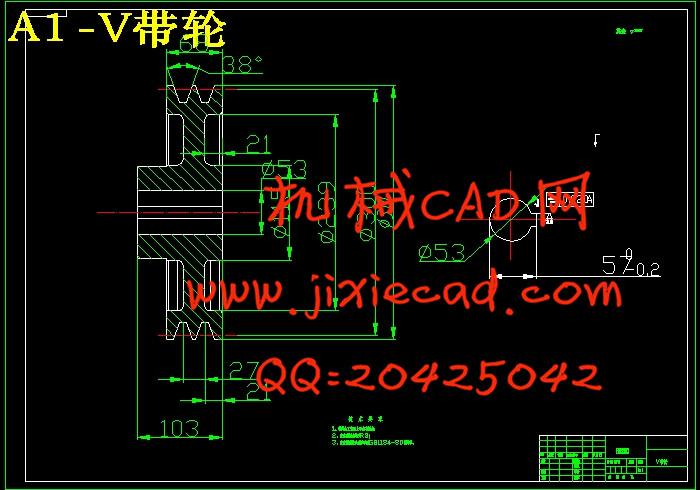

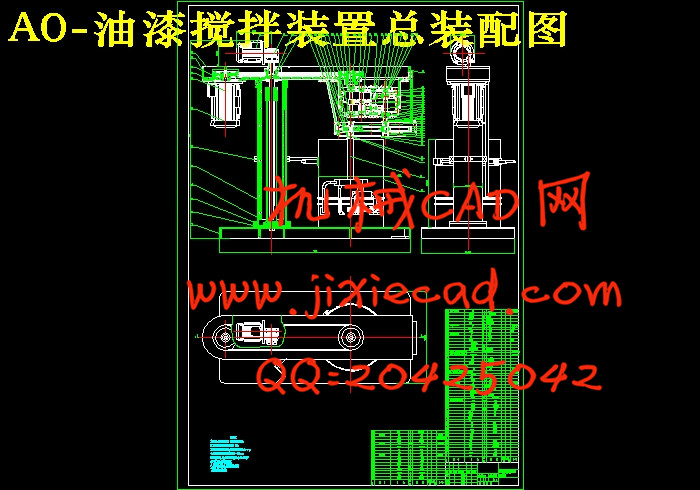

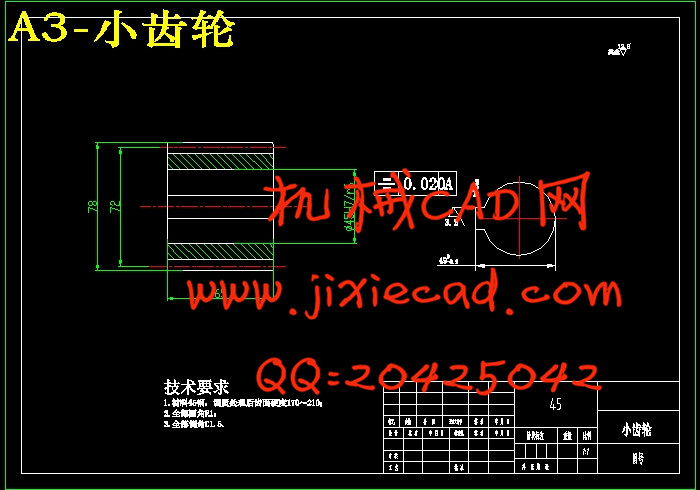

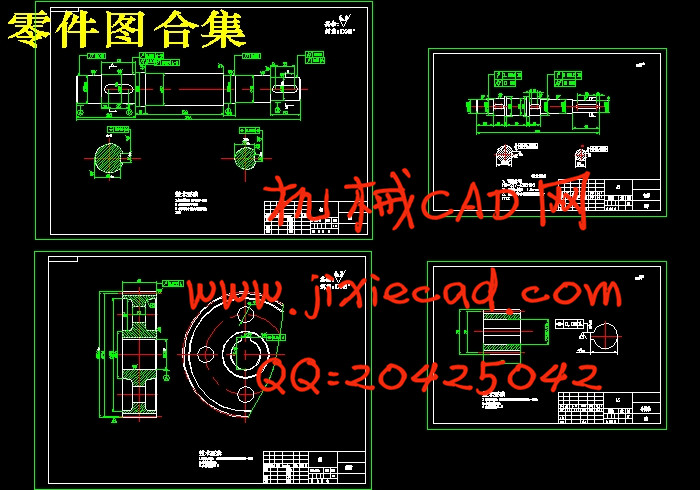

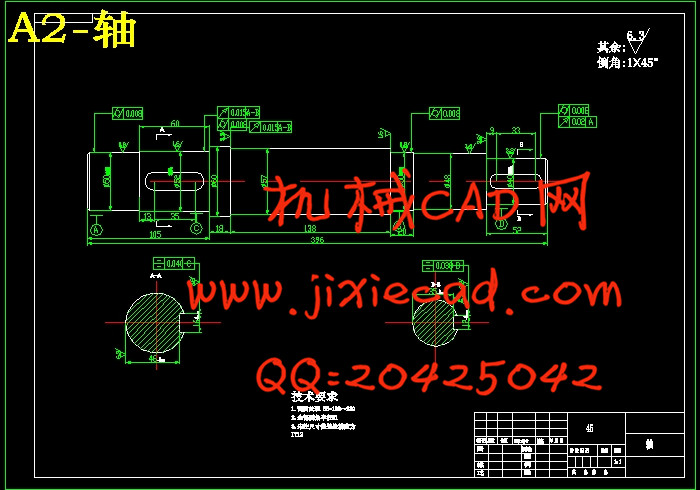

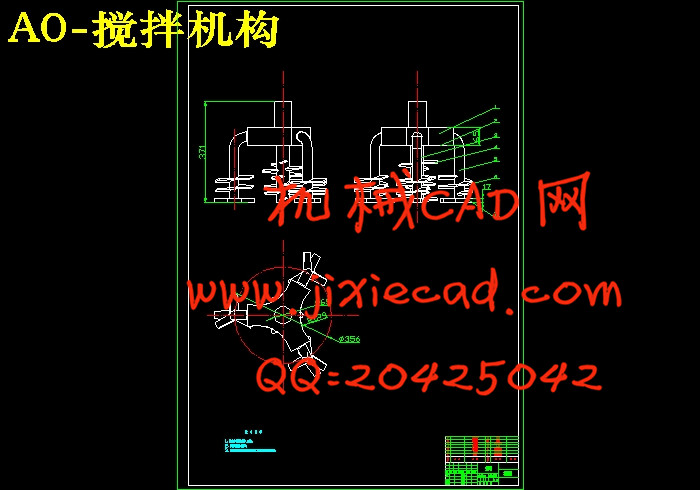

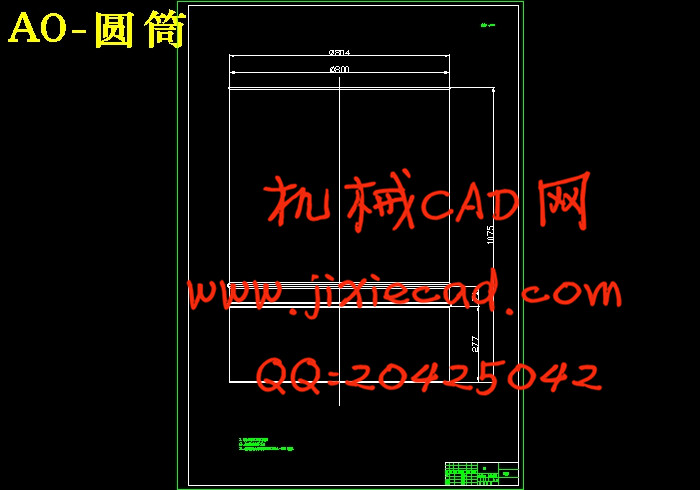

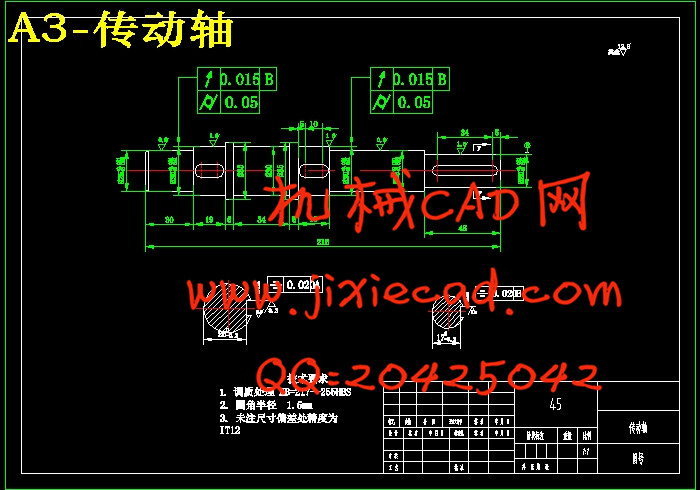

(7)绘制整机装配图及重要部件装配图和设计零件的零件图。

关键词：油漆搅拌装置；旋转机构；结构设计

Abstract


With the progress of science and technology, improve people's living standards, it led people to live and work in an environment with higher requirements. As a branch of building materials - paint industry has also been rapid development, the paint is indispensable for national economic sectors supporting materials, widely used in all types of buildings, various industrial products (such as aircraft, rockets, satellites, cars, ships, machinery and electronics and light industry and home appliances, etc.) and a variety of decorative steel protection facilities (such as docks, offshore oil drilling platforms, petrochemical equipment, pipelines, power transmission towers and bridges, etc.) corrosion protection. With the development of the national economy and people's living standards improve, coatings expanding range of applications. Paint consumption has become an important symbol of the country's level of economic development.
The whole structure consists of a motor, chassis, belts, gear, stirring means. Power generated by the electric motor is transmitted to the wheels via the power pulley would require drive pulley deceleration devices, power output reduction means to the chuck and screw top, so as to drive the whole device is moved
This thesis Summary:
(1) Design Architecture Design paint stirring devices.
Analysis (2) paint stirrer design performance.
(3) Select the motor.
(4) the paint stirrer drive system design, implementation components and chassis designs.
(5) Calculation of design parts design and verification.
(6) the use of computer-aided design, modeling design of the parts.
(7) to draw the whole assembly drawings and assembly drawings and design an important component part of part drawings.

Keywords: paint stirrer; rotational mechanism; structural design
