设计名称
普通车床简易数控改造设计【说明书+CAD】
设计编号
Z236
设计软件
AutoCAD,Word
包含内容

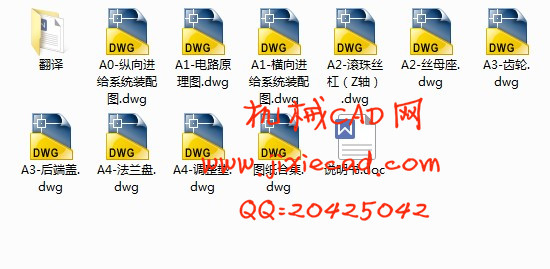

见右侧图片
说明字数

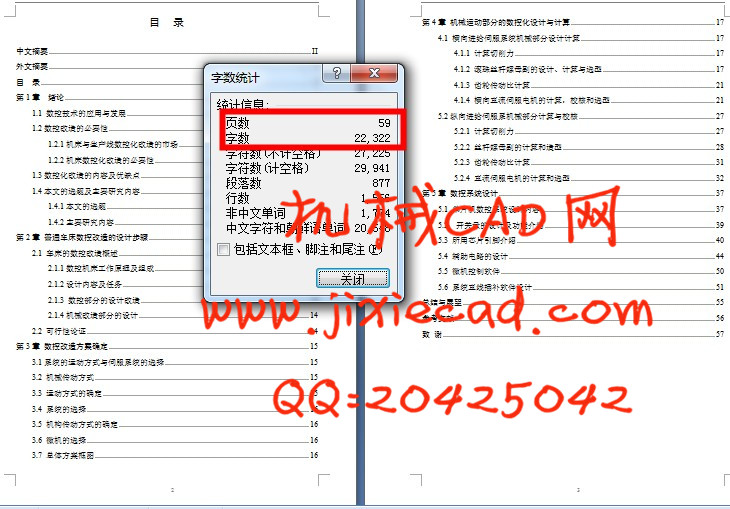

见下方截图
图纸数量

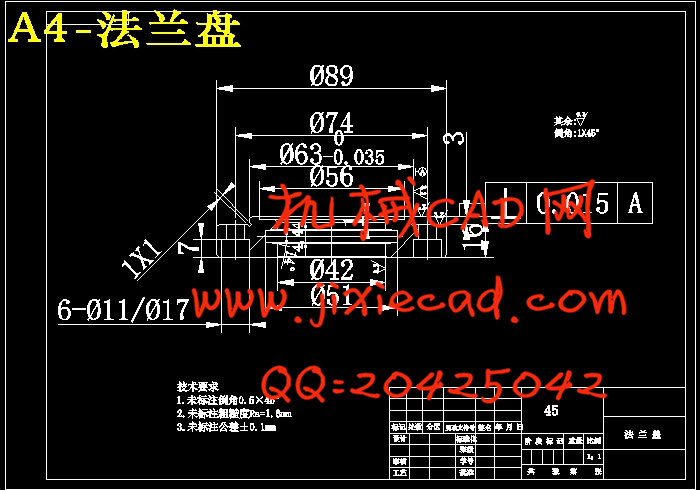

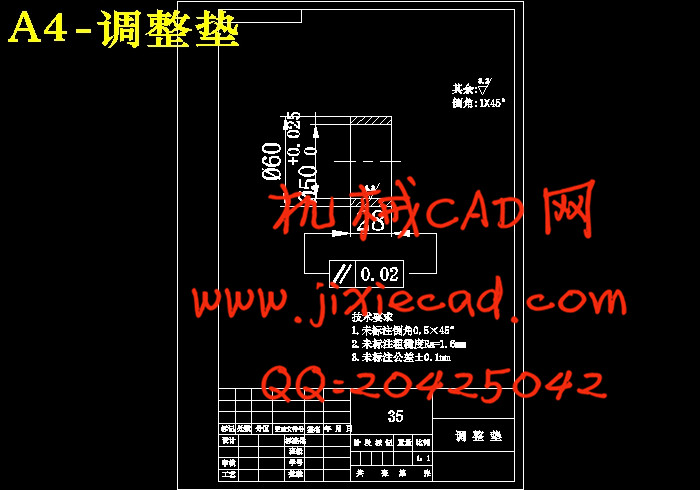

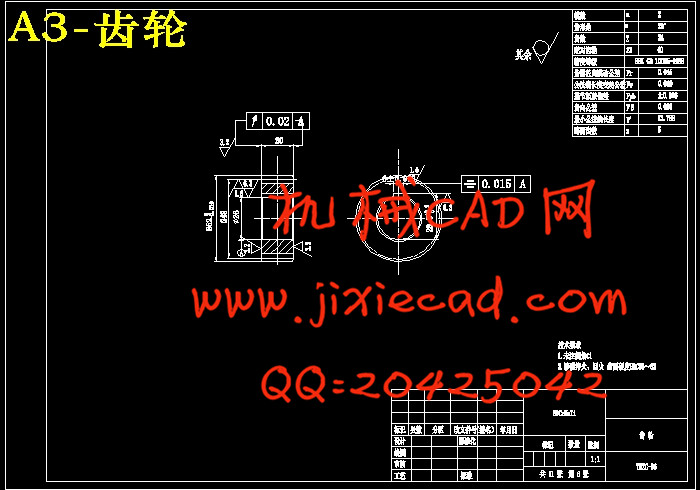

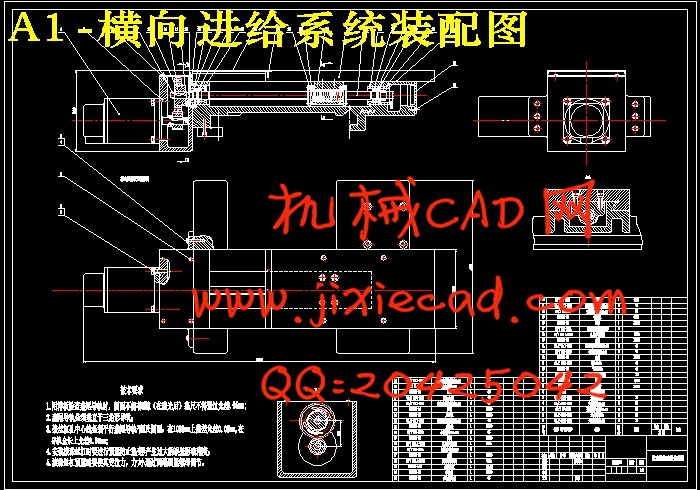

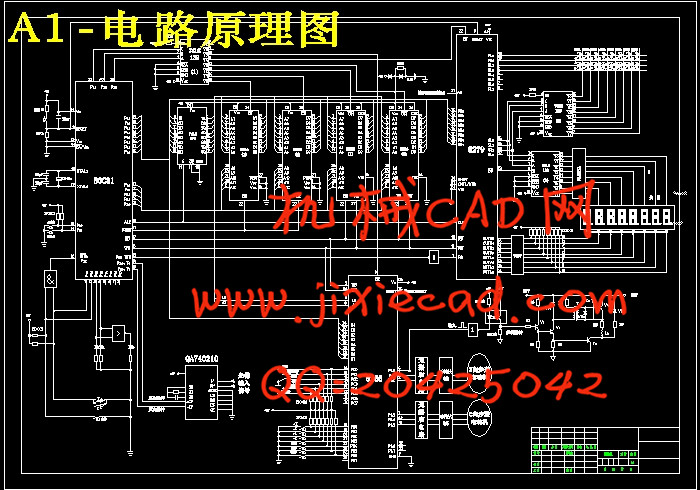

见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2017-11-15
整理人
admin
购买流程
查看如何购买本站设计

设计简介

中文摘要

随着当今工业设备对精密程度的要求越来越高，加工设备的机械加工设备的加工的精密程度也要求越来越高。而在中国的机械加工设备的车床中普通车床占了很大比例。这已经越来越制约着当今工业的发展。而数控机床由于价格昂贵，且需要较高技术的加工工人。所以对机床进行自动化改造很是必要。本篇论文是在对普通卧式车床的基础上对其进行自动化改造。
在搜索、查阅研究大量有关资料的基础上，对机床自动化改造技术进行了深入的研究和分析，并描述了机床控制系统的设计。整个改造过程主要对车床纵、横向进给系统进行改造，选用自动转位刀架，由脉冲发生器来加工所需要的螺纹。整个控制系统以单片机为中心，通过编程对机床的驱动设备进行控制以达到所需要的加工程度。

关键词：机床改造自动化机床控制系统
General CNC transformation

外文摘要

Abstract
With the development of industry equipment, the precision required of industry equipment is more and more high. The more and more precision of equipment which machined the industry equipment is required. But in China the common lathe have a very great comparison in the machined equipment, this already restrict the development of industrial nowadays. But the CN lathe is more expensive, and needed workers with higher technically. So it is a necessity very much to modify the common lathe to lathes automatic. This paper is in the foundation of the commonness horizontal lather and modified it to Lathes automatic.
The author has performed the further research and for the lathes automatic modification on the basis of the constant consultation of abundant relative documents, which focuses on describing the design of control of the machine. The main to modify the lathe is to modify the portrait, horizontal enter to the system in the Whole modification process and choose the automatic knife rest and be processed the thread need by pulser. The whole control system with the CPU is to control the machine for center, through a plait distance drive tool machine an equipments to carry on control to attain need of process degree.

Keywords Machinery Tool Reform Lathes automatic Servo system
