设计名称

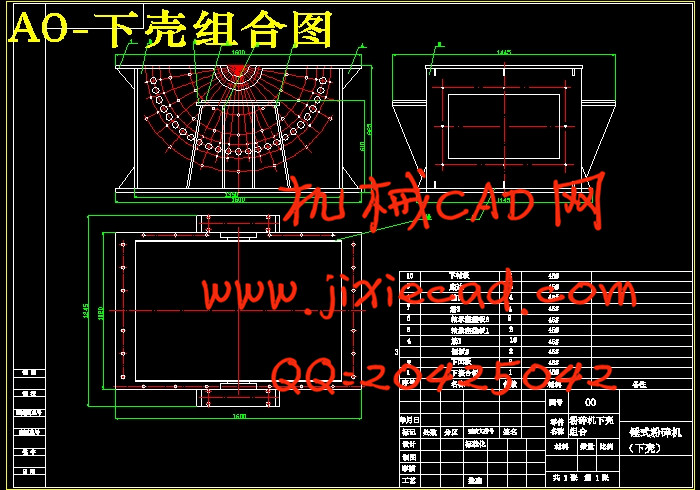

锤式制砖原料粉碎机的设计【单转子、不可逆、多排、带铰接锤头】【说明书+CAD】
设计编号
JX3748
设计软件
AutoCAD,Word

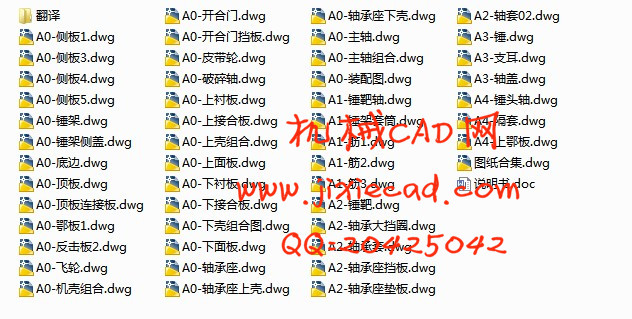

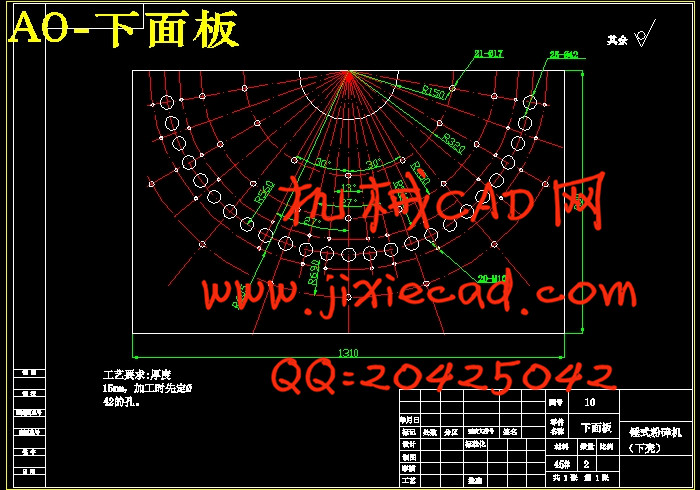

包含内容
见右侧图片
说明字数
见下方截图

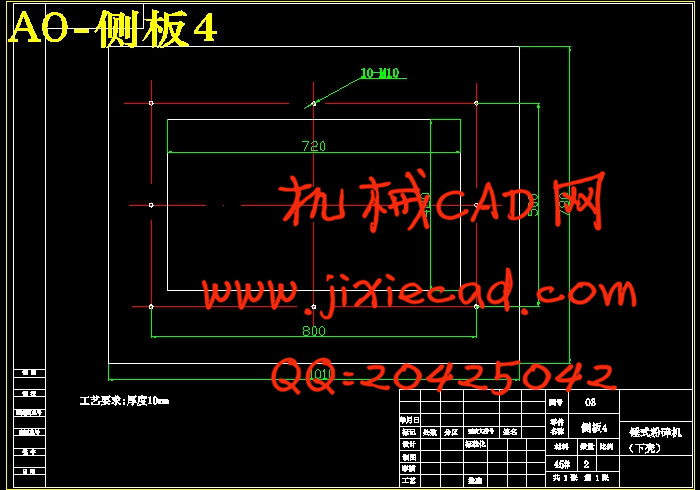

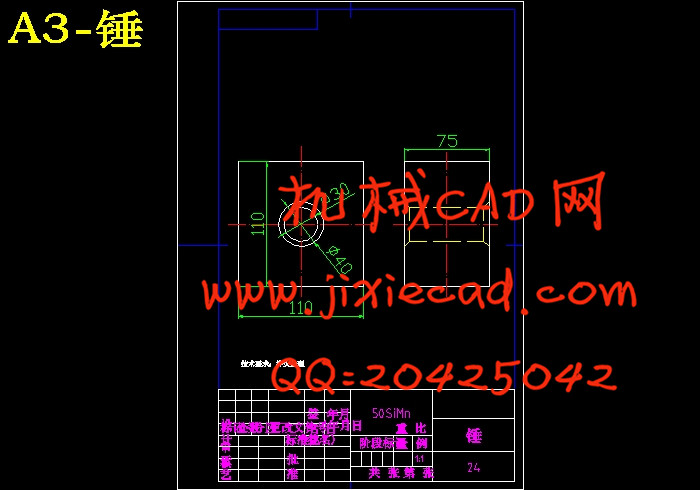

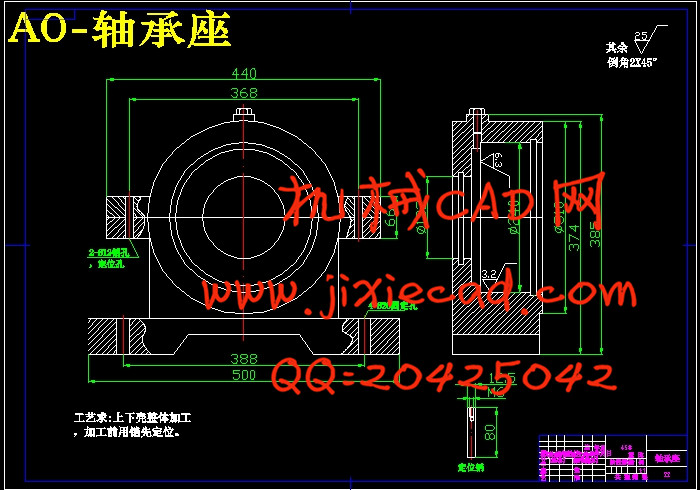

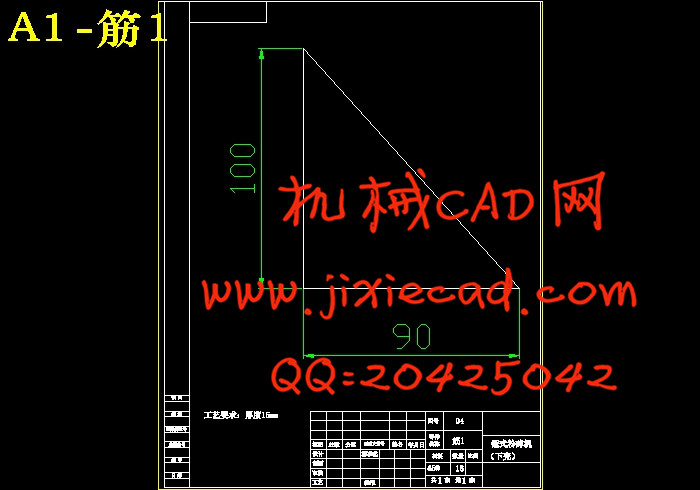

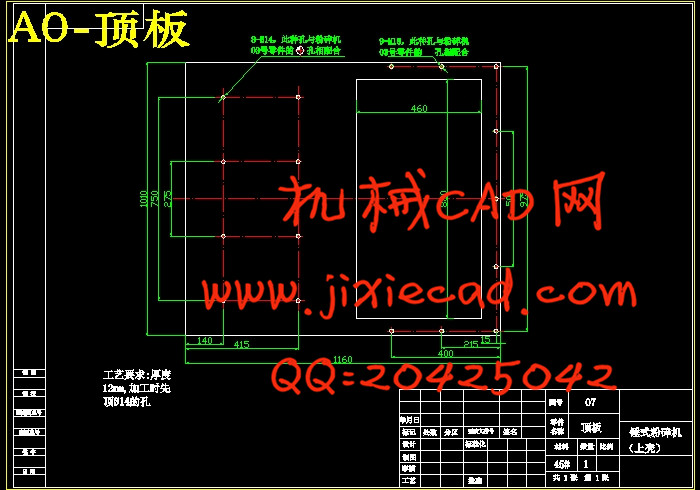

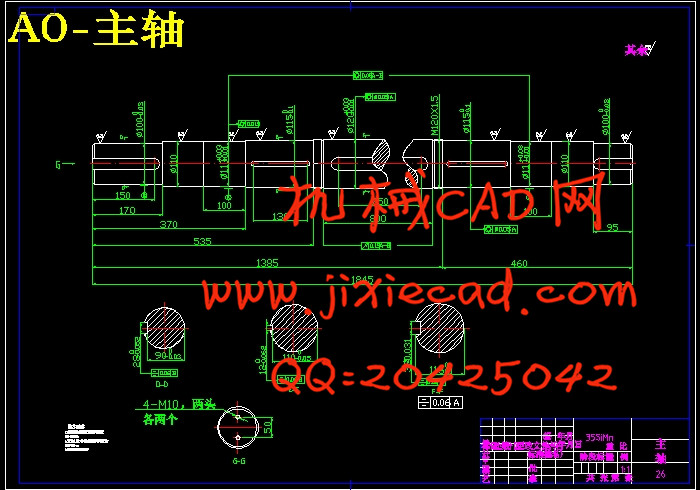

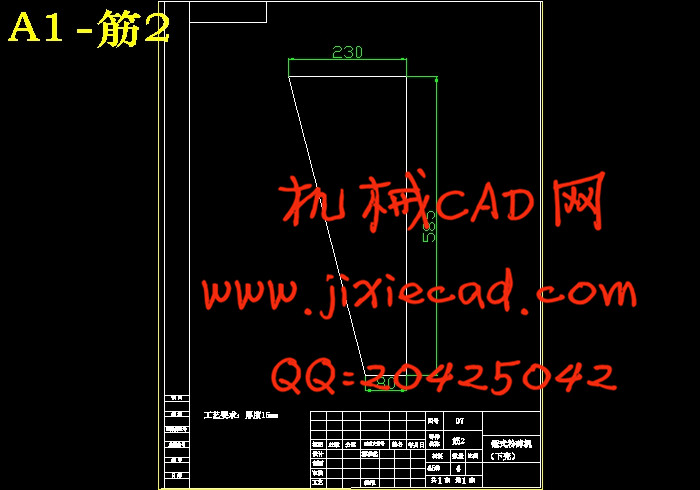

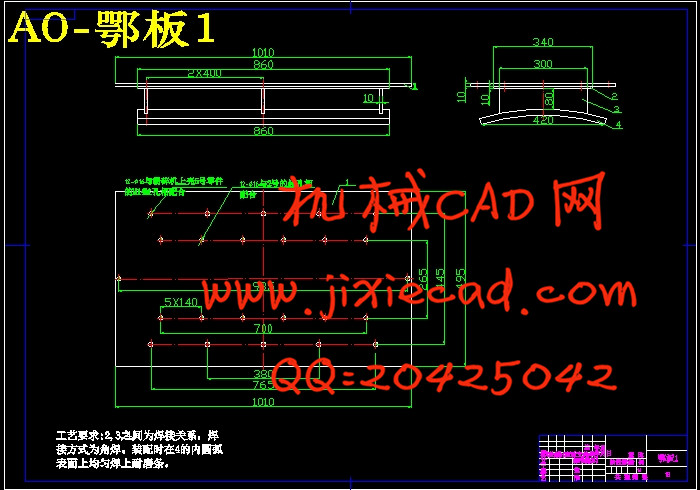

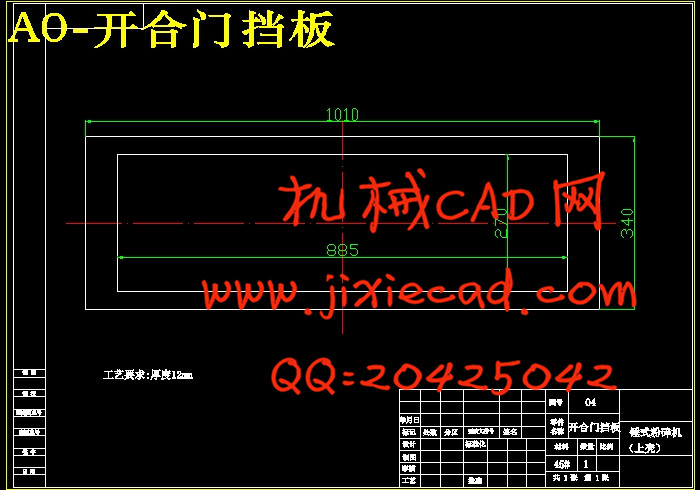

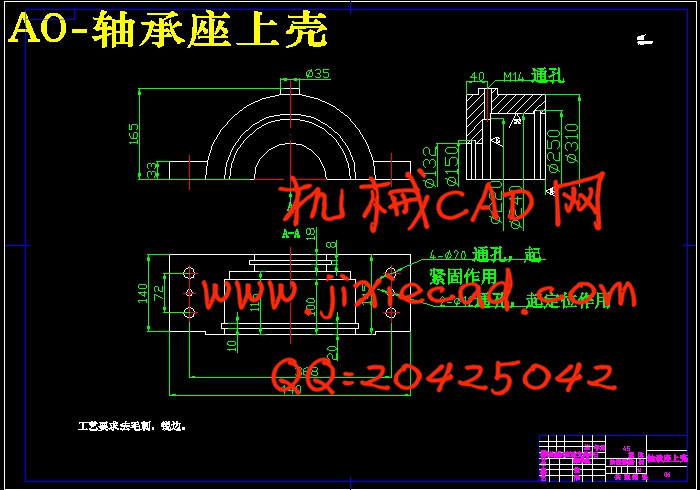

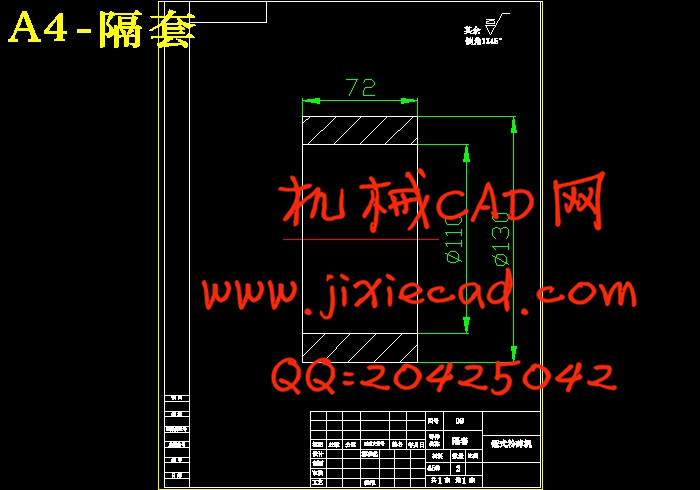

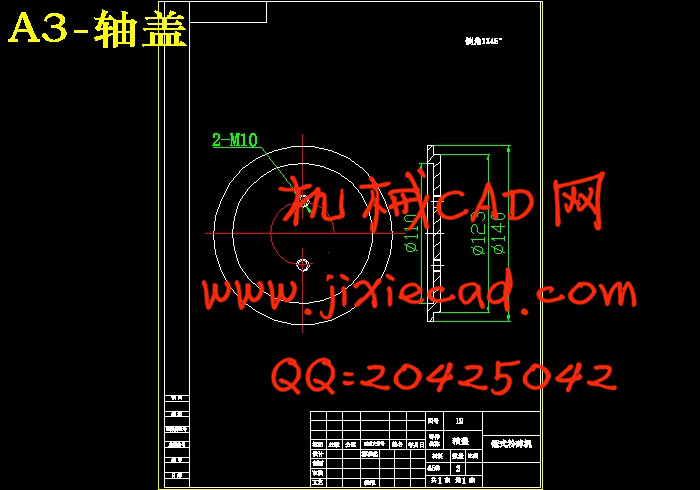

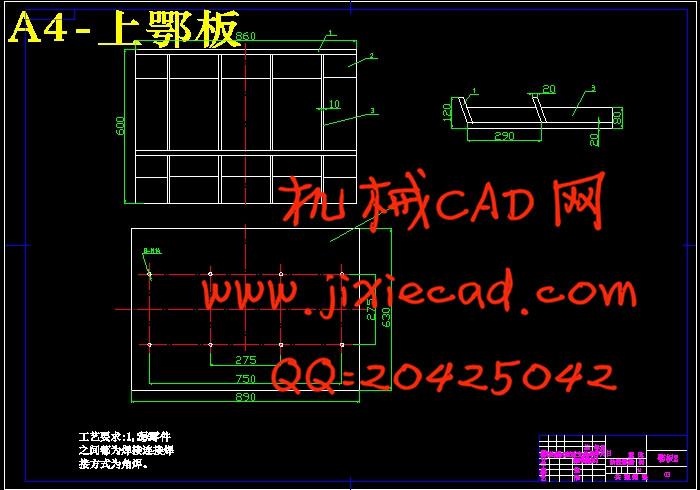

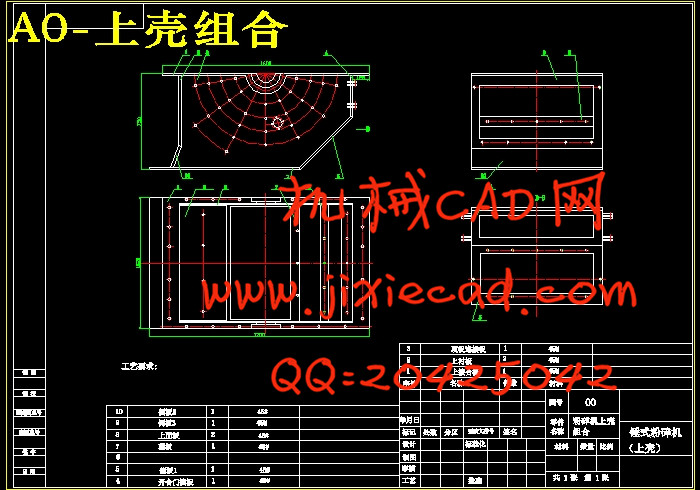

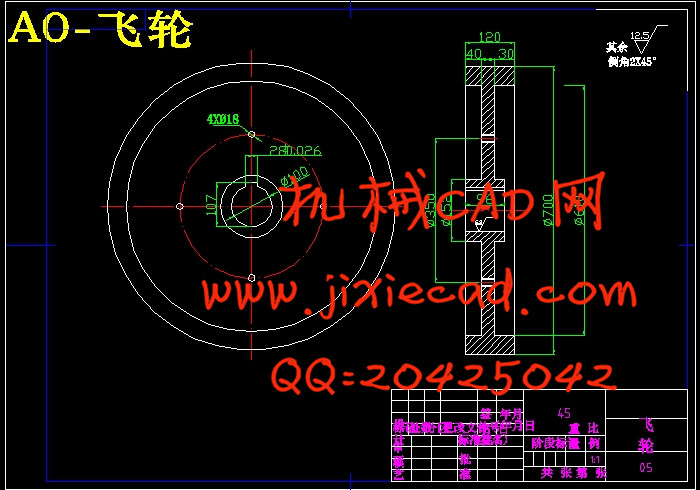

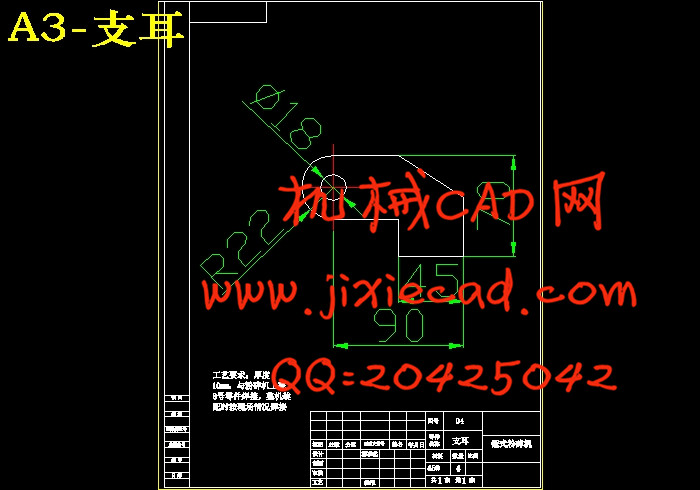

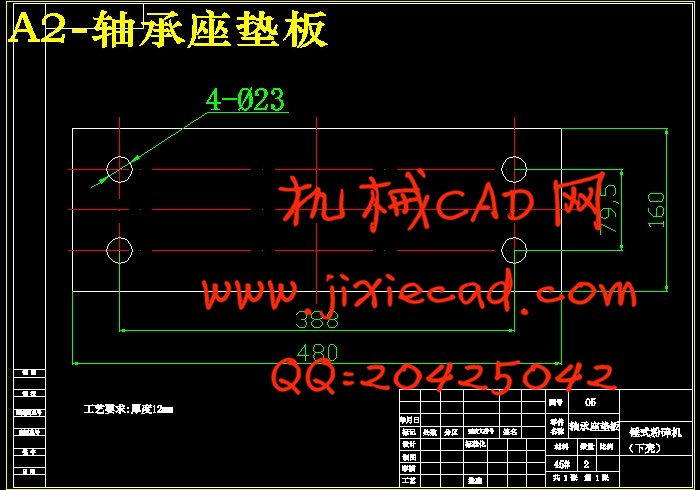

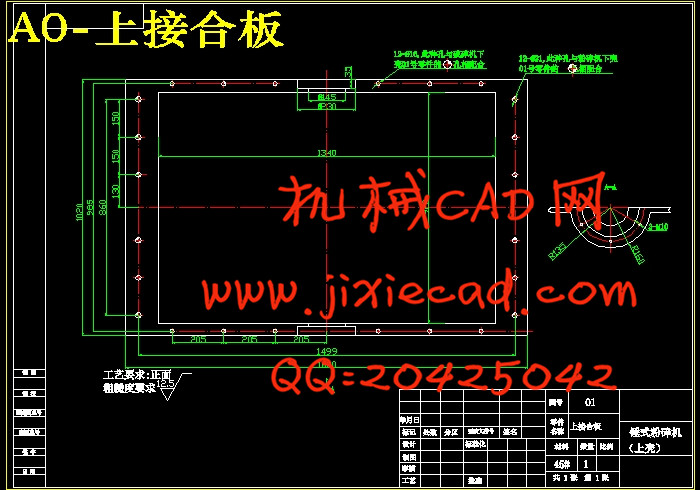

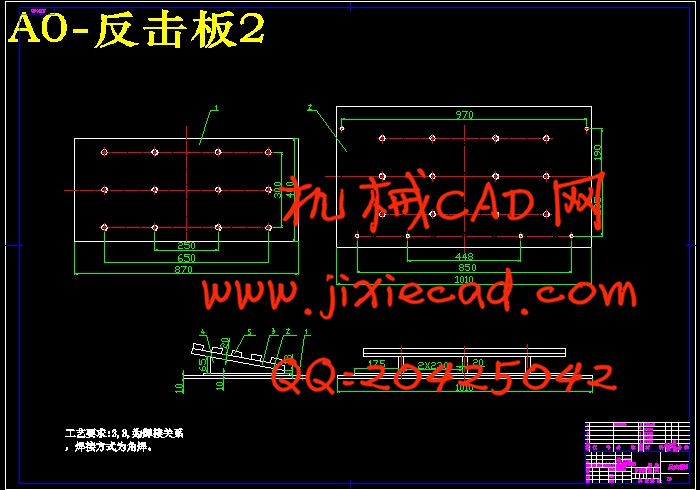

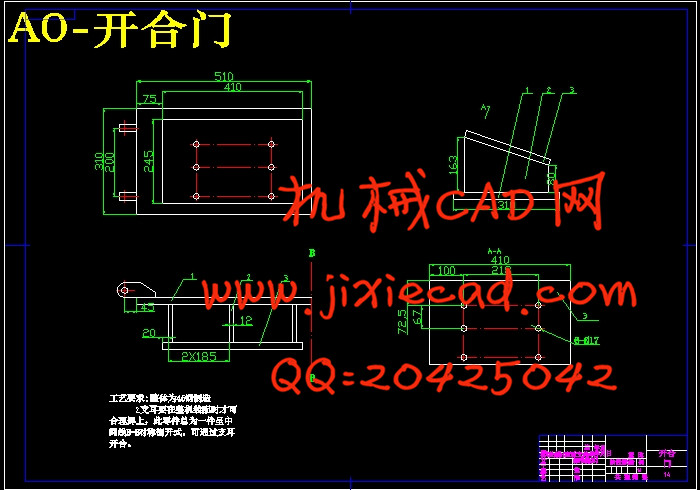

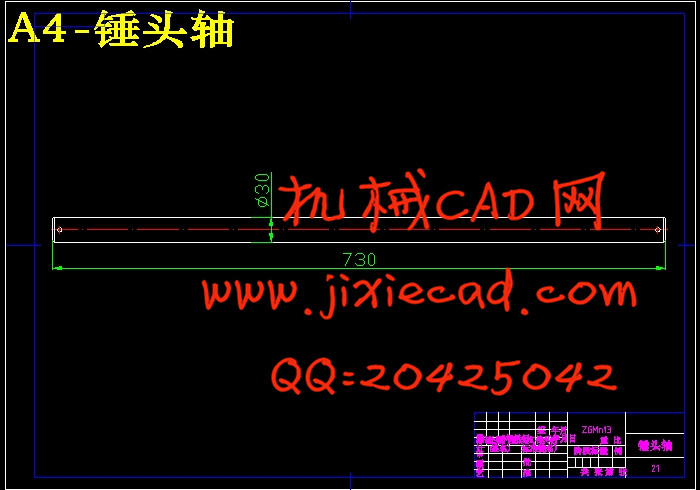

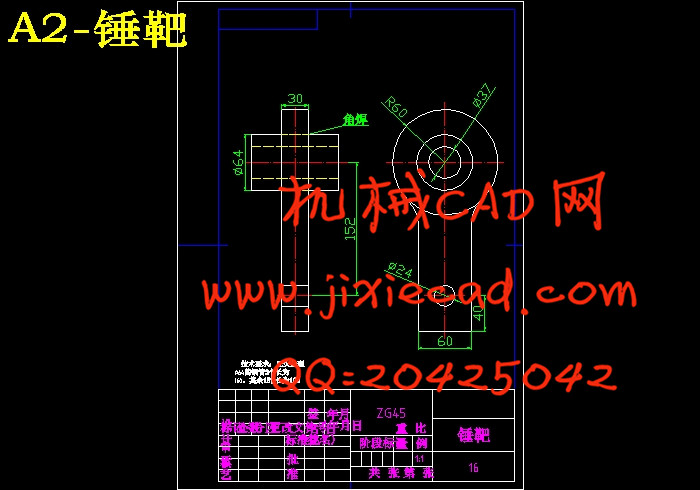

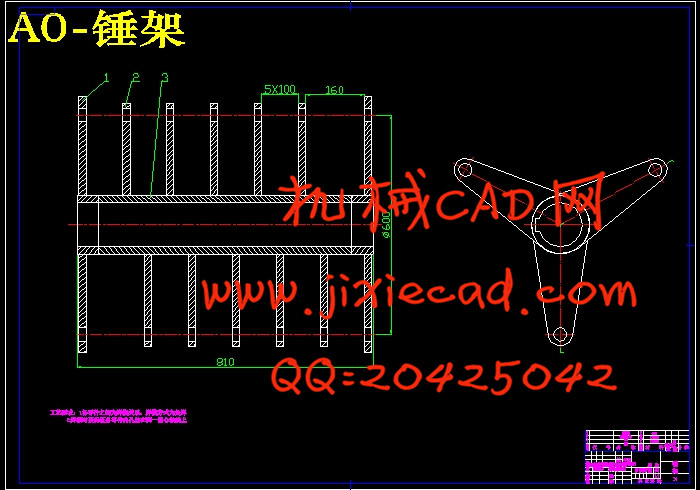

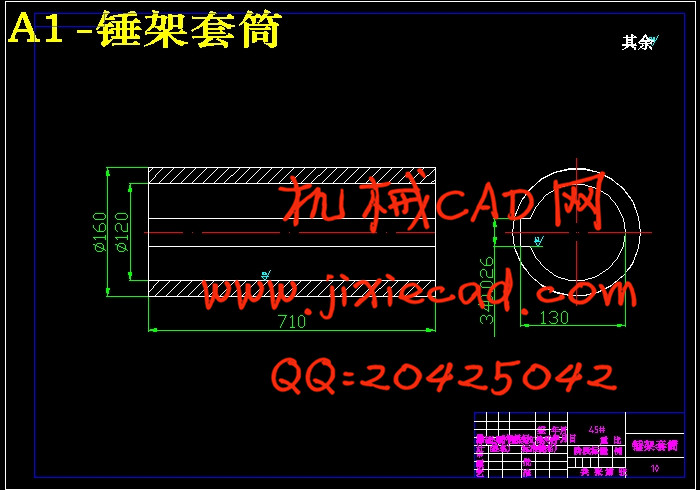

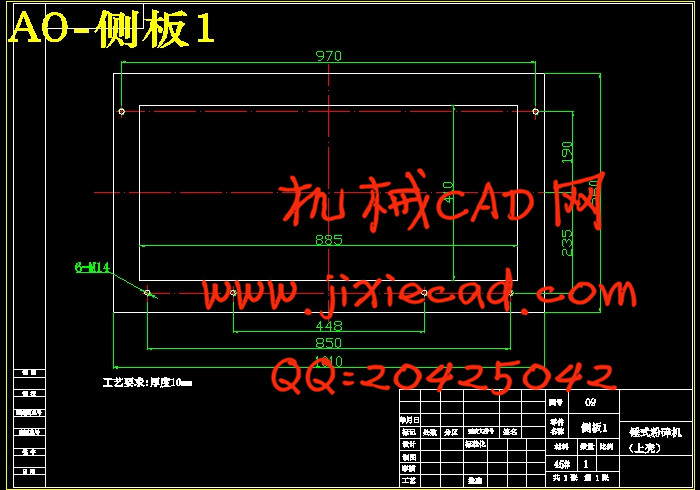

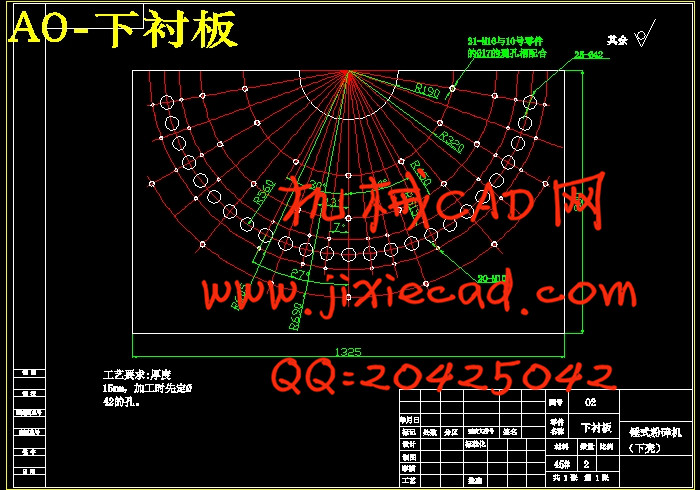

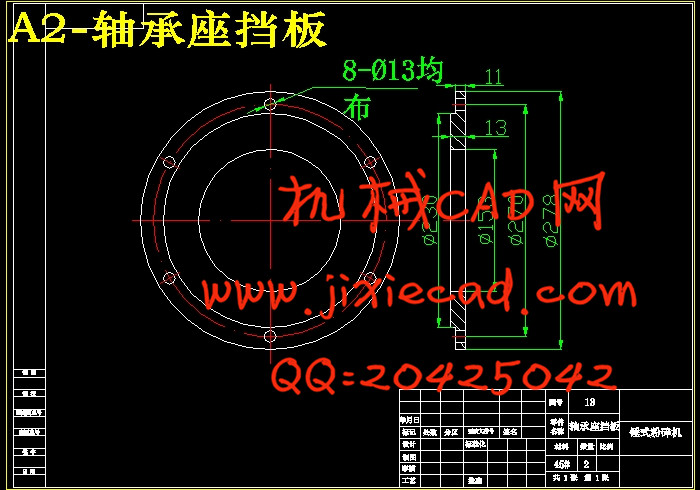

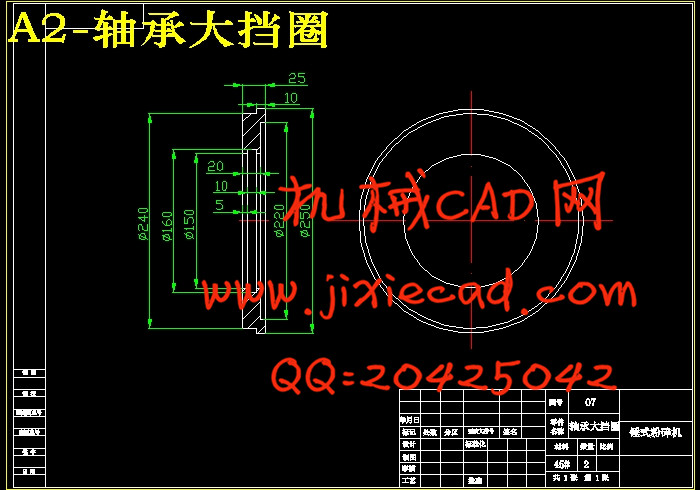

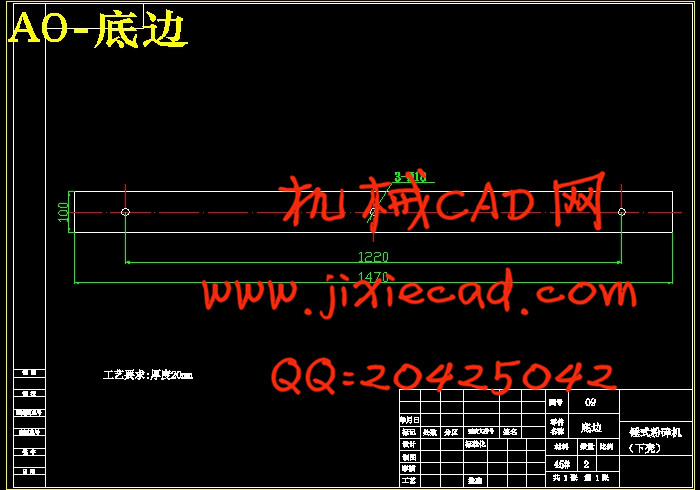

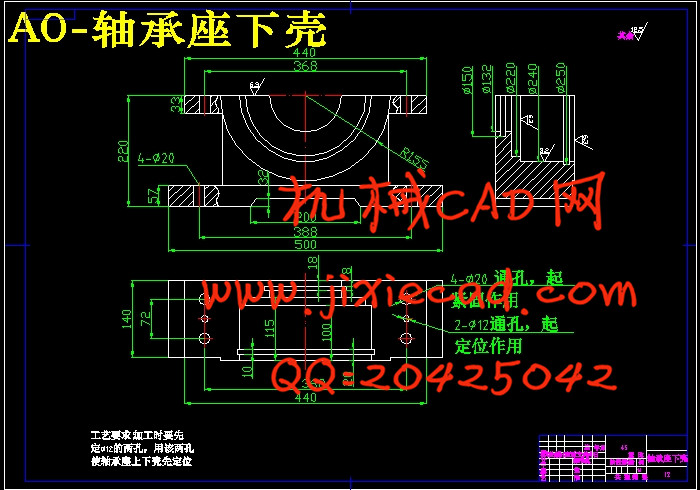

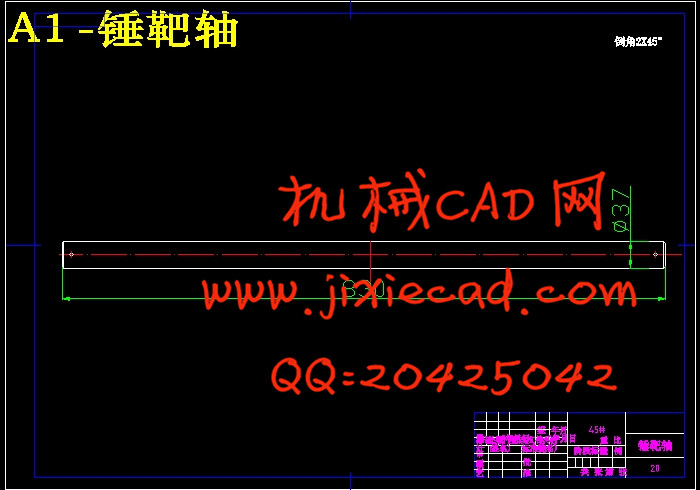

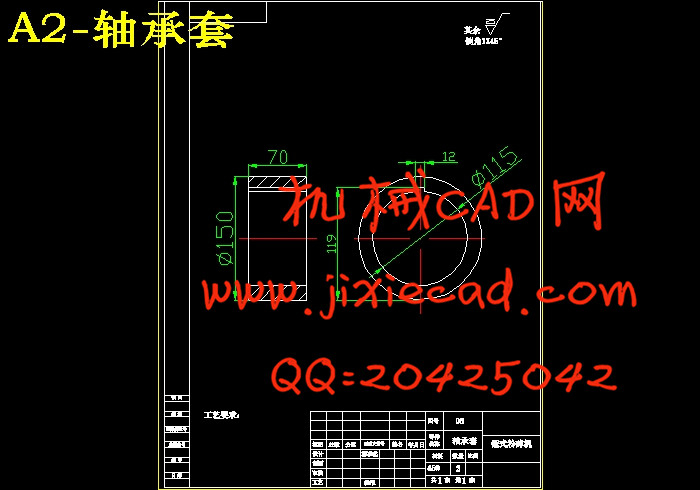

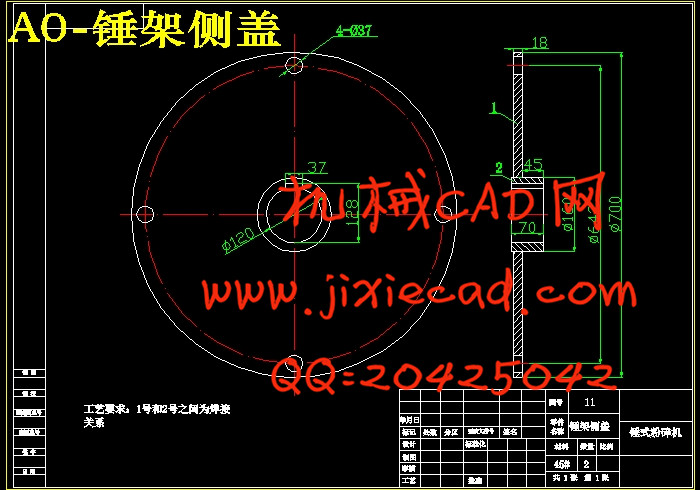

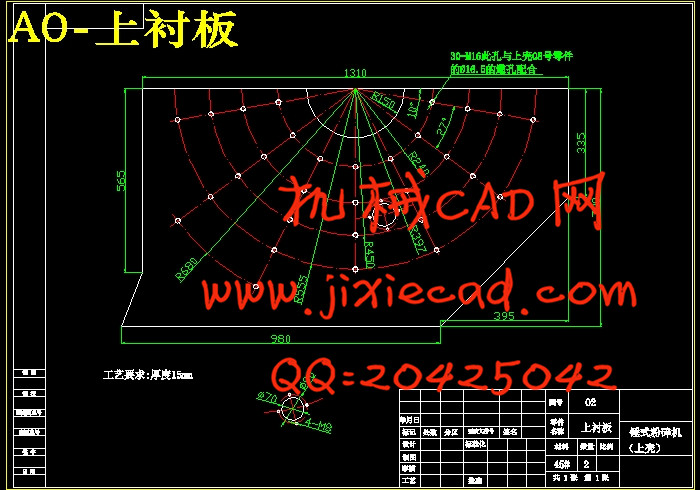

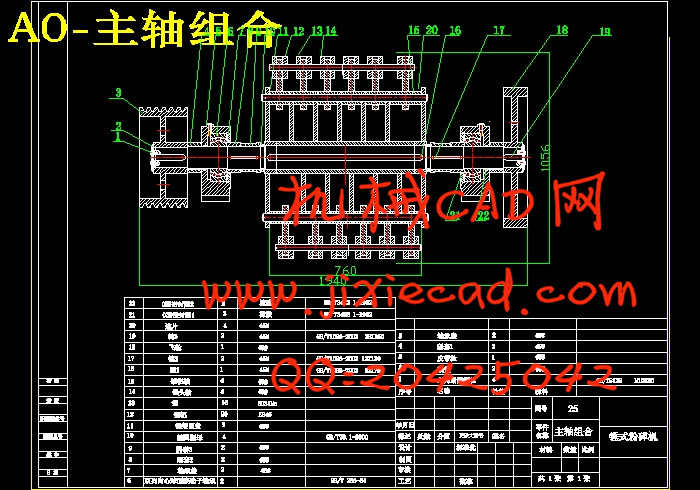

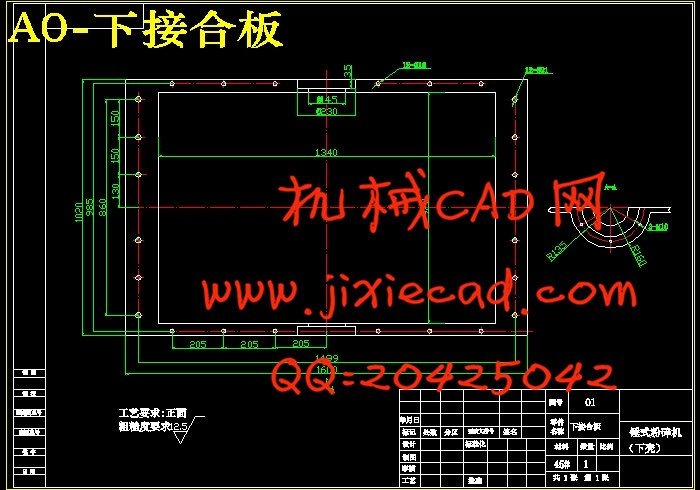

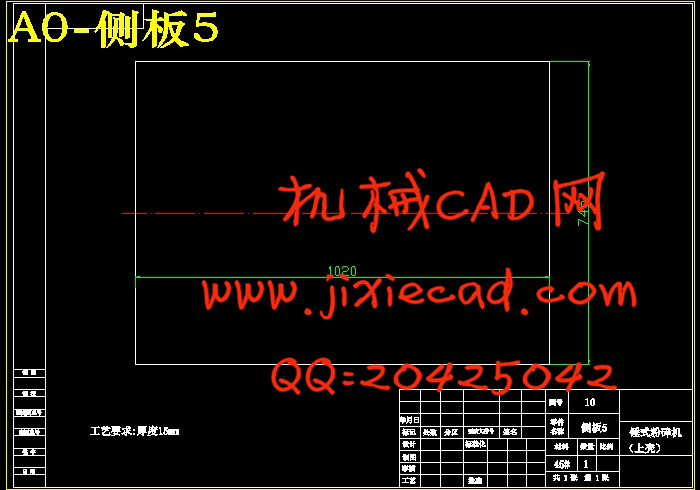

图纸数量
见右侧图片
推荐指数
较高
价格
价格优惠中
整理日期
2017-09-19
整理人
admin
购买流程
查看如何购买本站设计

设计简介

摘要
制砖原材料的粉碎是砖坯生产过程中的关键工序，随着科学技术的不断发展，以及市场需求的变化，各行各业也起着日新月异的变化，锤式粉碎机可将制砖用原材料经过粉碎后达到制砖粒度的要求。本设计提出的锤式制砖原料粉碎机适用于页岩、煤矸石等制砖原材料的粉碎精选处理。
我所设计的制砖原料粉碎机是在原通用设备的基础上通过革新改进、现场观察后完善研制而成的一种新型粉碎设备。其特点是：结构合理，性能可靠，锤头采用高耐磨性和韧性的高锰材料铸造并经热处理工艺，可调整使用最大四次角面。主轴密封性良好。筛体采用破碎轴形式单独设计，更换方便、维修便利、出料利落、不易赌塞，可确保整条生产线其他设备正常工作，达到机械设备设计产量要求，是砖瓦生产过程中的理想配套设备。
这次我所设计锤式粉碎机是单转子的、不可逆的、多排的、带铰接锤头的粉碎机。

关键词：制砖原料、锤式、转子、粉碎机

Abstract

Brick making raw material grinding is the key procedure of brick production, along with the continuous development of science and technology, as well as the change of market demand, all trades and professions also plays a change rapidly changes, hammer crusher can be for brick-making raw materials through crushing to brick size requirements.The design of the hammer type crusher is suitable for raw material for making brick shale, coal gangue brick making raw material crushing selection processing.
I designed the brick raw material mill is in the original universal equipment on the basis of innovation, through on-site observation after the perfect development of a new type crushing equipment.Its characteristics are: reasonable structure, reliable performance, hammer with high wear resistance and toughness of high manganese cast material and the heat treatment process, can be adjusted using the maximum four angle face.Main shaft seal of good.The sieve body adopts the crushing shafts form a separate design, convenient replacement, repair facilities, discharging agile, not easy to jam, can ensure that the entire production line and other equipment was working properly, achieves the machinery and equipment design and production requirements, is the brick and tile production process equipment supporting the ideal.
This time I design a hammer crusher is a single rotor, irreversible, multiple rows, with a hinged hammer crusher.
Key words: Raw material for making brick、Hammer type、Rotor 、Pulverizer
