设计简介
轴碗冲压工艺及模具设计
摘要：本课题是对轴碗落料拉深冲孔翻孔复合模模具设计，其中分别对模具的工作零部件等六大类零部件作详细设计。设计的主要内容包括冲裁件的工艺分析及工艺方案的确定、工艺计算、冲裁模具的设计、模具的安装与调整等。
在工艺计算部分要对排样设计与计算、冲压力的计算、模具压力中心的确定、凸凹模尺寸并确定制造公差的计算与计算等内容详细计算。
在冲裁模的设计部分要对工作零件、定位零件、卸料与顶件零件、导向零件连接与固定零件等结构进行详细的分析设计。要在设计过程中了解模具的工作过程和注意标准的选用，对复合冲裁模的结构有进一步的了解。
模具的安装与调试部分要注意导柱模具与无导柱模具的安装方法及顺序，通过模具的安装，了解模具的组成及各部分零部件的作用等。注意模具安装过后的试冲过程中常见的缺陷与解决方法等。
通过这次毕业设计要对复合模具有更进一步的了解，在设计时要注意模具结构简单、模具使用方便、模具寿命高等问题。并且要提高生产效率，保证产品的质量。
关键词：落料拉深冲孔翻边 试冲 间隙配合 过渡配合
Abstract:This lesson a molding tool for is fall to anticipate to pull to the stalk bowl deep blunt the bore turn over bore compound mold molding tool design,among them distinguish to wait to the work zero parts of the molding tool six the parts of big zeros make the detailed design.The main contents of designing includes to wash to cut a piece craft analysis and craft projects really settle, craft calculation, the gearing of the design, molding tool that wash to cut the molding tool and adjust etc..
Compute in the craft the part want to be to the row kind design and calculation, wash the calculation, molding tool pressure of the pressure center to really settle, convex and cave mold size and make sure the calculation that make the business trip and compute the detailed calculation in contents in etc..
Cut the mold to want at the design part that wash to the work spare parts, position the spare parts and unload to anticipate with a spare parts, lead to spare parts conjunction with fix spare parts etc. construction the proceeding the detailed analysis design.Want to be in design process work process of understanding the molding tool with notice to choose to use standardly, to reunite the construction that wash the understanding that cut the mold further have.
The gearing of the molding tool with adjust to try the part want to notice to lead the pillar molding tool to lead the pillar molding tool with gearing method and sequences that have nos, passing the gearing of the molding tool, understanding the molding tool constitute and function etc. of each parts of the parts of zeros.Noticing the molding tool installs to try to wash the familiar blemish of inside of process later on and solution method etc..
Pass this time graduate the design want to have the nearer and one-step understanding to the compound molding tool, while designing to notice the molding tool construction simple, molding tool usage convenience, high etc. in life span in molding tool problem.And increase production efficiency, guarantee the quantity of the product.
Keyword:Fall to anticipate to pull deep blunt bore to turn over a side Try to blunt Cleft match transition match

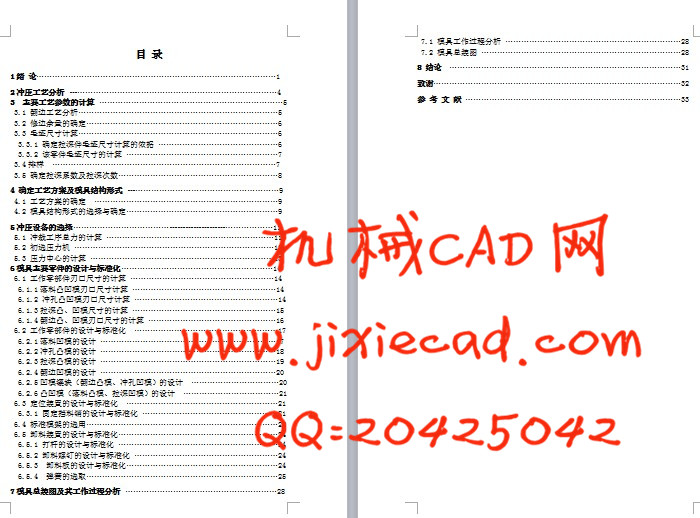

目 录
1绪 论………………………………………………………………………………1

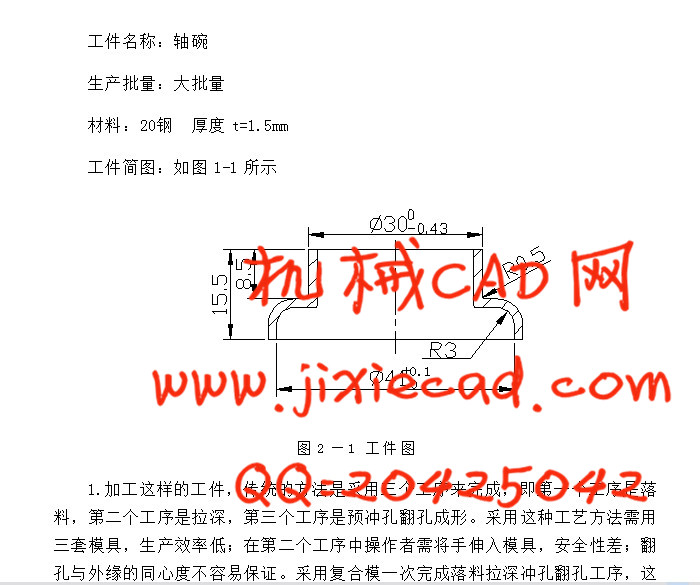

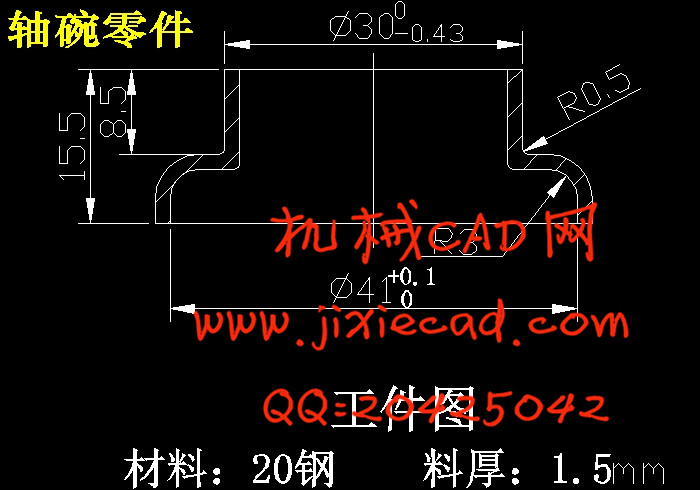

2冲压工艺分析 ……………………………………………………………………4
3 主要工艺参数的计算 ……………………………………………………………5

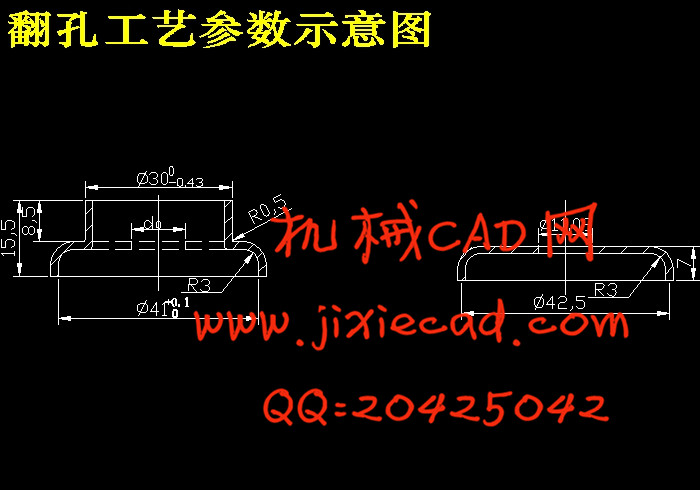

3.1 翻边工艺分析…………………………………………………………………5
3.2 修边余量的确定………………………………………………………………6
3.3 毛坯尺寸计算…………………………………………………………………6
3.3.1 确定拉深件毛坯尺寸计算的依据 ………………………………………6
3.3.2 该零件毛坯尺寸的计算 …………………………………………………7
3.4排样 …………………………………………………………………………7
3.5 确定拉深系数及拉深次数……………………………………………………8
4 确定工艺方案及模具结构形式 …………………………………………………9
4.1 工艺方案的确定 ……………………………………………………………9
4.2 模具结构形式的选择与确定…………………………………………………9
5冲压设备的选择…………………………………………………………………11
5.1 冲裁工序总力的计算 ………………………………………………………11
5.2 初选压力机 …………………………………………………………………13
5.3 压力中心的计算 ……………………………………………………………13
6模具主要零件的设计与标准化…………………………………………………14
6.1 工作零部件刃口尺寸的计算 ………………………………………………14
6.1.1落料凸凹模刃口尺寸计算 ………………………………………………14
6.1.2 冲孔凸凹模刃口尺寸计算 ………………………………………………14
6.1.3拉深凸、凹模尺寸的计算 ………………………………………………15
6.1.4翻边凸、凹模刃口尺寸的计算 …………………………………………16

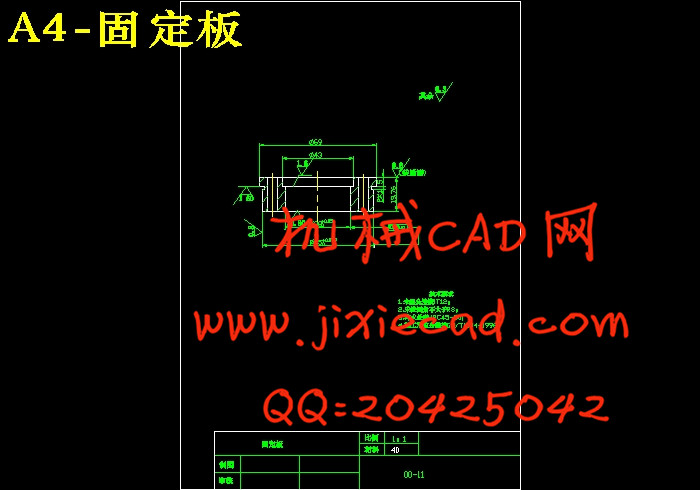

6.2 工作零部件的设计与标准化 ………………………………………………17

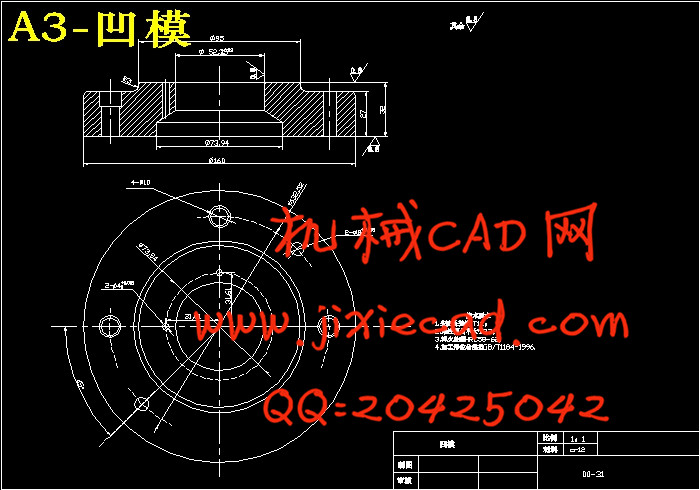

6.2.1落料凹模的设计 …………………………………………………………17
6.2.2冲孔凸模的设计 …………………………………………………………18
6.2.3拉深凸模的设计 …………………………………………………………19

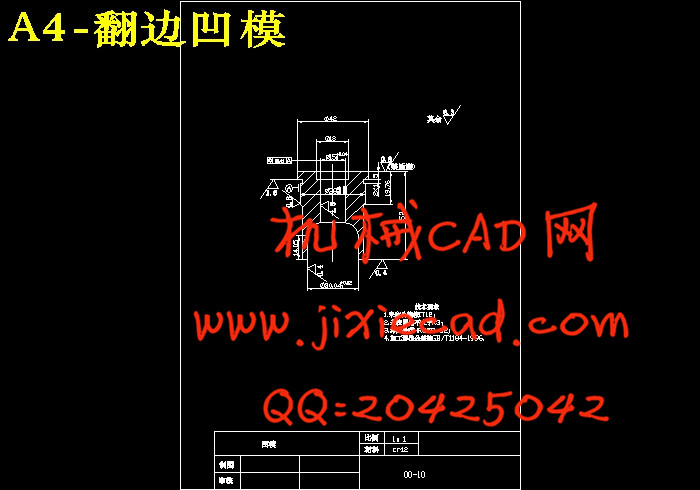

6.2.4翻边凹模的设计 …………………………………………………………20

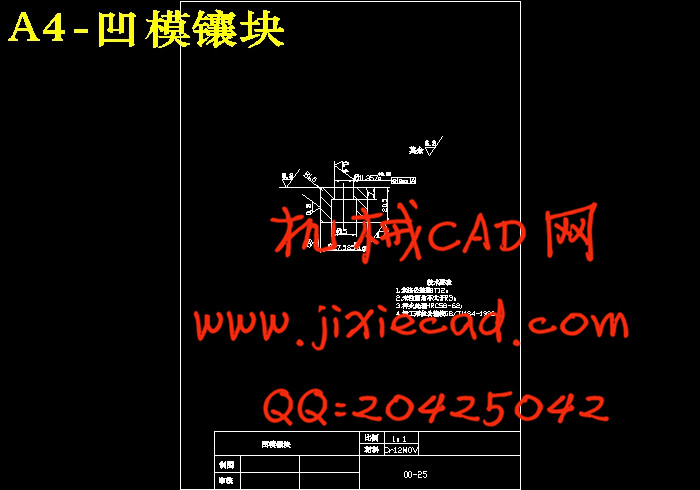

6.2.5凹模镶块（翻边凸模、冲孔凹模）的设计 ……………………………20

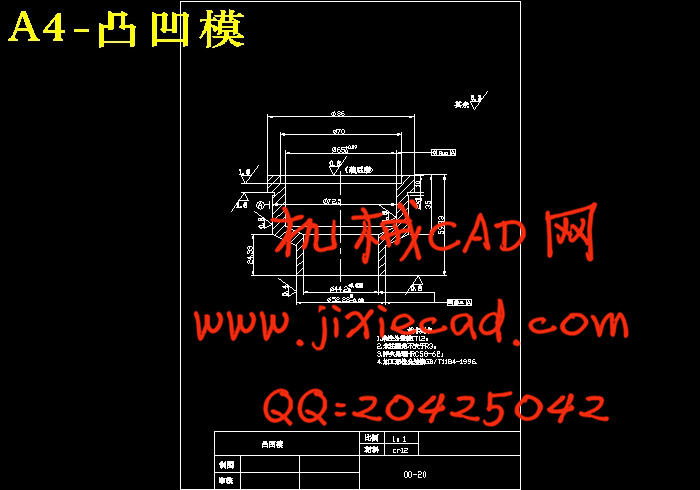

6.2.6凸凹模（落料凸模、拉深凹模）的设计 ………………………………21
6.3 定位装置的设计与标准化 …………………………………………………21
6.3.1 固定挡料销的设计与标准化 ……………………………………………21

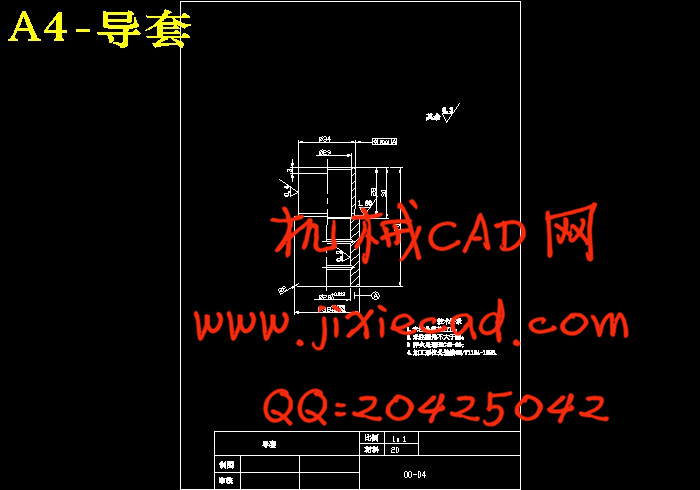

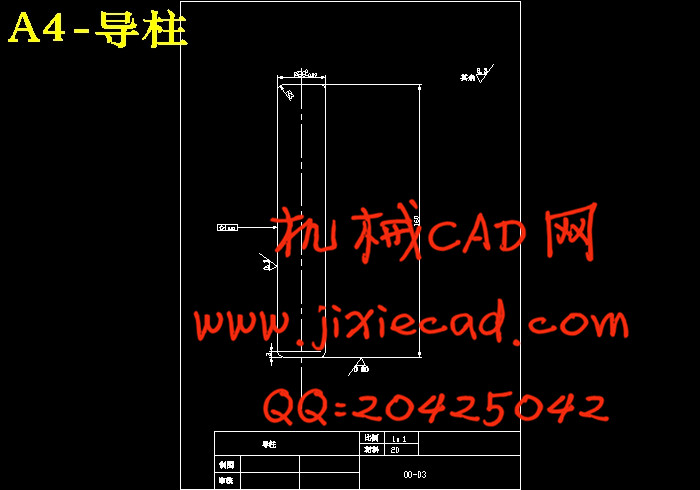

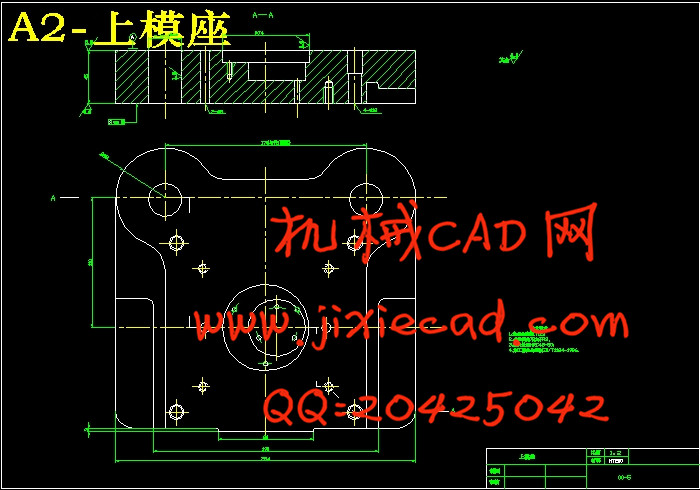

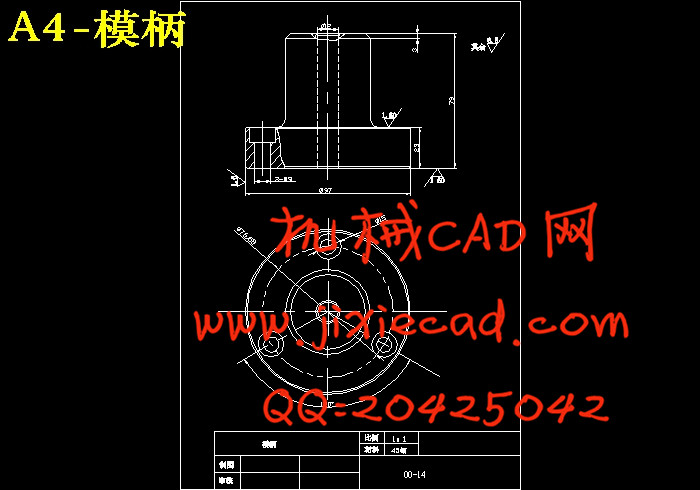

6.4 标准模架的选用………………………………………………………………22

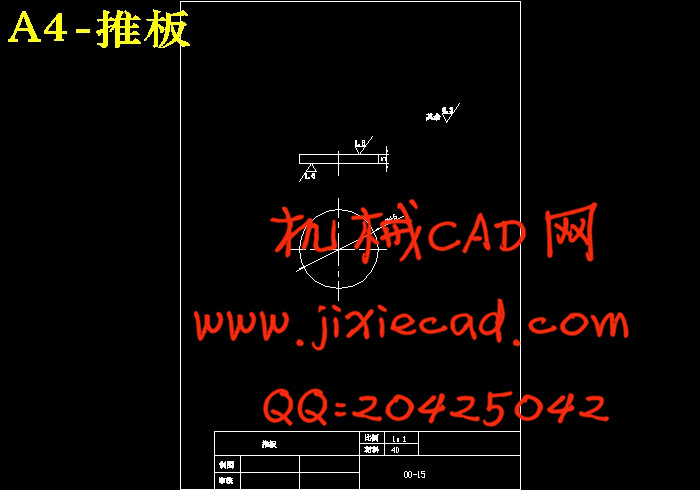

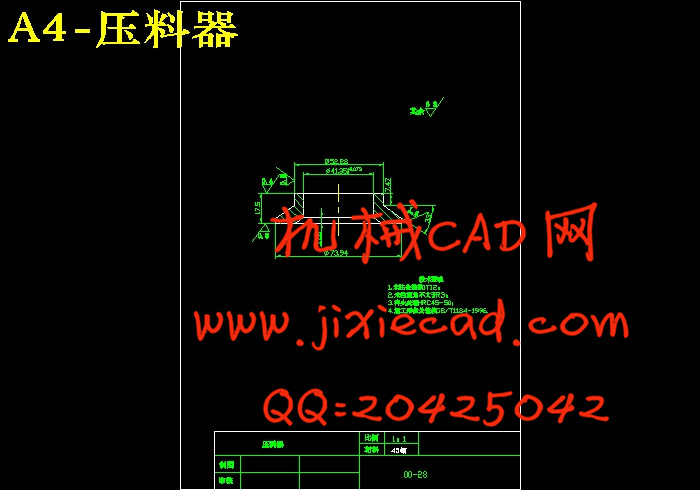

6.5 卸料装置的设计与标准化……………………………………………………24

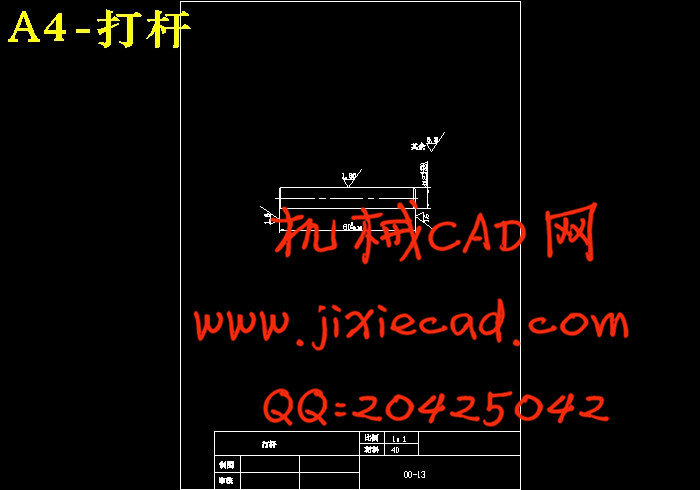

6.5.1 打杆的设计与标准化 ……………………………………………………24
6.5.2 卸料螺钉的设计与标准化 ………………………………………………24
6.5.3 卸料板的设计与标准化…………………………………………………24
6.5.4 弹簧的选取………………………………………………………………25
7模具总装图及其工作过程分析 …………………………………………………28
7.1 模具工作过程分析 …………………………………………………………28

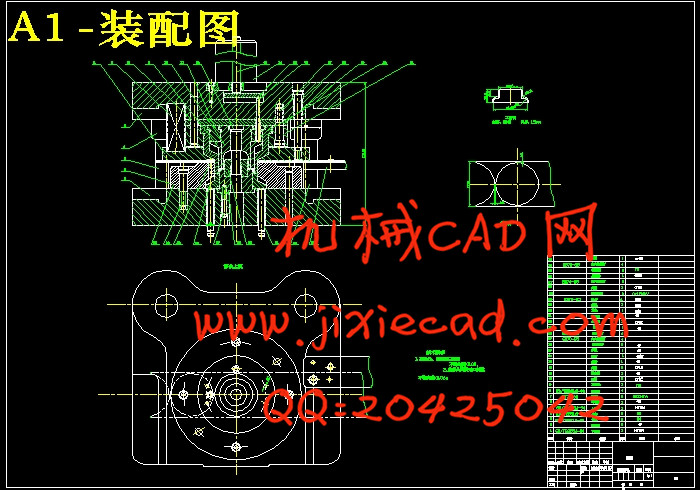

7.2 模具总装图 …………………………………………………………………28
8 结论 ……………………………………………………………………………31
致谢…………………………………………………………………………………32
参 考 文 献 ………………………………………………………………………33
